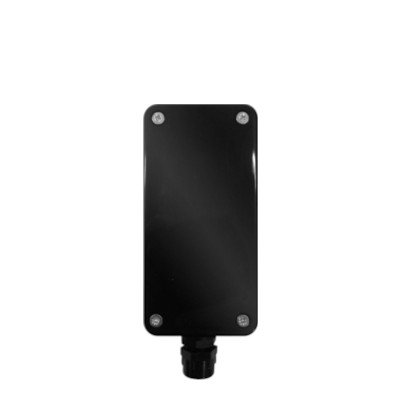

The AMI MIC-0002 Internal Microphone is a compact audio recording device used with compatible AMI Voyage Data Recorder (VDR) and Simplified Voyage Data Recorder (S-VDR) systems. It receives 12 V DC power from the MEU and provides a balanced 600-ohm audio output. Its built-in self-test function supports microphone monitoring, while the plug-and-socket connection simplifies installation.

Technical Specification

Specification	Details
Make	AMI Marine
Model	MIC-0002
Product Type	Internal Microphone
Compatible Systems	X2272 / VR2272-B
Application	VDR / S-VDR Bridge Audio Recording
Installation Location	Indoor / Bridge
Operating Voltage	12 V DC
Power Source	Main Electronics Unit (MEU)
Audio Output	600-ohm balanced output
Connector Type	6-pin connector
Self-Test Function	Built-in self-test
Mounting	Four external screw holes
Installation Method	Plug-and-socket connection
Dimensions	100 × 50 × 25 mm
Weight	50 g
Country of Origin	United Kingdom (manufacturer location; verify origin)
IMO Approval	Separate component approval not confirmed
Compatibility Note	Not compatible with the X-VDR system
