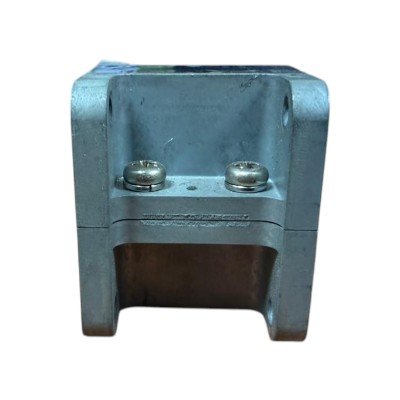

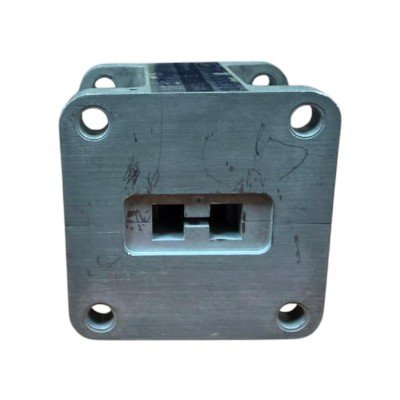

The JRC NJS6930 is an X-Band Diode Limiter specifically designed for high-power marine radar systems. Its primary job is to protect the radar’s sensitive receiver (Front End) from the high-power pulses emitted by its own transmitter (Magnetron).
In a radar system, the transmitter and receiver often share the same antenna. When the magnetron fires an 8 kW pulse, the NJS6930 acts as a “gatekeeper,” limiting the energy that reaches the receiver to a safe level (milliwatts) to prevent burnout.
| Specification | Details |
| Frequency Range | 9.30 GHz to 9.50 GHz (X-Band) |
| Peak Input Power | 8 kW |
| Flat Leakage Power | 150 mW max |
| Spike Leakage Power | 600 mW max |
| Recovery Time | 0.5 μsec max |
| Insertion Loss | 1.5 dB max |
| RF Interface | Waveguide: WR90 / Flange: UG-135/U Equivalent |
