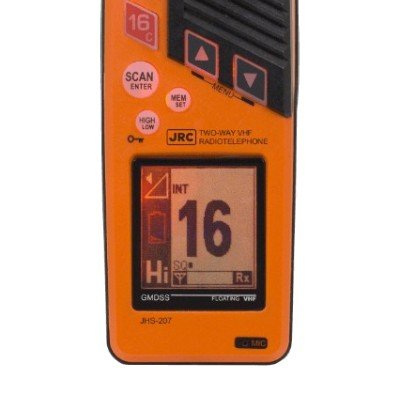

JRC, JHS-207 Two-way VHF Radiotelephone

Categories , Tags , Brand:

The JRC JHS-207 is a professional, high-performance “two-in-one” portable VHF radiotelephone designed for both daily onboard communication and emergency GMDSS (Global Maritime Distress and Safety System) life-saving situations.

It is particularly notable for being a floating unit that meets strict SOLAS requirements without needing an external buoyancy cover.

  • “Two-in-One” Functionality: The radio automatically switches its behavior based on the battery installed:

    • Emergency Mode: Activated by the NBB-789 (Yellow) primary battery. The radio locks into essential emergency channels and simplified controls for rapid response.

    • Regular Mode: Activated by the NBB-748 rechargeable battery, providing access to all 57 maritime VHF channels for daily use.

  • Floating & Watertight: It is the first portable GMDSS VHF that floats on its own. It features an IP67-rated watertight socket for accessories, ensuring it remains sealed even when a speaker-mic is connected.

  • Noise Cancelling: Equipped with an advanced microphone noise-cancelling system, making it highly effective for communication in noisy engine rooms or on wind-swept decks.

  • Intelligent Charger: The compact NJD101037 charger allows the user to see vital information on the radio’s display while it is docked and charging.

  • Lightweight Design: Weighing only 0.3 kg (approx. 0.66 lbs), it is designed to prevent user fatigue during long watches or extended emergency operations.

Technical Specification

Category Feature Specification
General Weight Approx. 0.3 kg (with battery)
Operating Temp $-20$°C to $+55$°C
Channels (Regular) Up to 57 Channels
Channels (Emergency) 21 Channels
Battery Life Emergency (NBB-789) 12 Hours (10:10:80 duty cycle)
Rechargeable (NBB-748) Typ. 12 Hours
Transmitter Power Output (Reg) Lo: 1W / Mid: 2W / Hi: 4W
Power Output (Emerg) Lo: 1W / Hi: 2W
Receiver Sensitivity $< 1$ µV at 20 dB SINAD
Audio Output High-quality NC (Noise Cancelling)
Physical Waterproofing IP67 (Submersible & Floating)
Dimensions 64 x 163 x 40 mm

There are no reviews yet.

Be the first to review “JRC, JHS-207 Two-way VHF Radiotelephone”

Your email address will not be published. Required fields are marked *

Download

JHS207 CATALOG
