JRC, JFE-380 ECHO SOUNDER

The JRC JFE-380 is a marine echo sounder designed to measure water depth beneath a vessel for safe navigation.

It works by transmitting ultrasonic sound pulses from a hull-mounted transducer and measuring the time taken for the echo to return from the seabed.

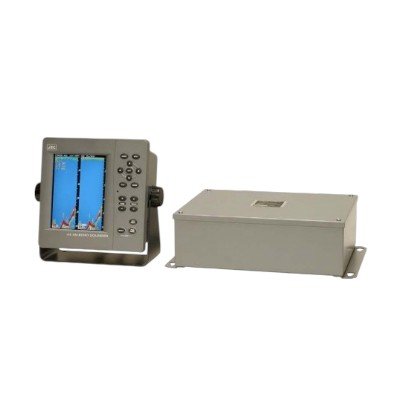

Compact sized display unit (6.5″ TFT LCD)
No paper (Optional: External printer is available)
High accuracy and high reliability
Depth data for the last 24 hours in memory to playback the past sounding information
Meets IMO standard MSC.74(69) Annex 4

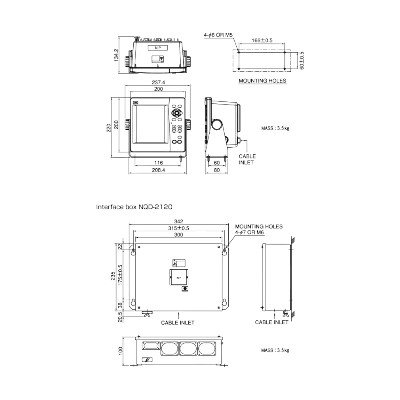

Technical Specification

🖥️ Display

Type: 6.5-inch Color TFT LCD

Resolution: 640 × 480 pixels

Echo presentation: 8 colors or 8-level monochrome

📡 Frequency

200 kHz (shallow water)

50 kHz (deep water)

Dual-frequency operation (optional simultaneous use)

📏 Depth Measurement

Range:

10 / 20 / 50 / 100 / 200 / 500 / 800 m

Minimum depth:

1.0 m (200 kHz)

2.0 m (50 kHz)

Accuracy: ±2.5% of indicated depth

Digital readout: 4 digits (resolution 0.1 m)

⚙️ Performance

TX pulse repetition rate:

171 PRR (10–50 m range)

86 PRR (100–200 m range)

43 PRR (500–800 m range)

Draft adjustment: up to 50 m (0.1 m steps)

🧠 Display Modes

Standard mode

History mode

Docking mode

⏱️ Data & Memory

Stores depth data up to 24 hours

Echo display time scale:

5 / 10 / 20 / 30 minutes

🔔 Alarm Functions

Shallow depth alarm

Power failure alarm

System error alarm

⚡ Power Supply

AC: 100–115V / 200–230V ±15%

Frequency: 50/60 Hz ±5%

DC: 24V (monitoring only)

Power consumption: < 20 W

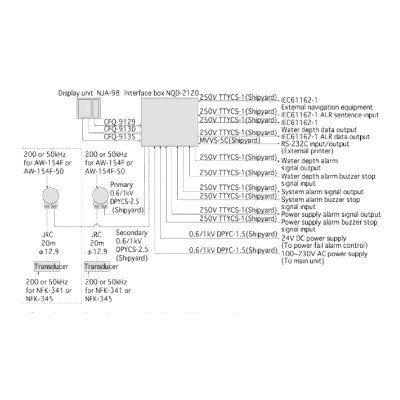

🌊 Transducer

200 kHz: UT-200ND

50 kHz: UT-50MD

💧 Environmental Protection

Display unit: IPX5 (water jet proof)

Connection box: IPX2 (drip proof)

⚙️ Functions

Auto gain control

Auto range selection

Playback (24-hour history)

📡 Compliance

IMO Resolution MSC.74(69) Annex 4 compliant

The JRC JFE-380 is a dual-frequency IMO-compliant echo sounder with:

800 m depth capability

24-hour memory playback

High accuracy (±2.5%)

Advanced display modes for navigation and docking
