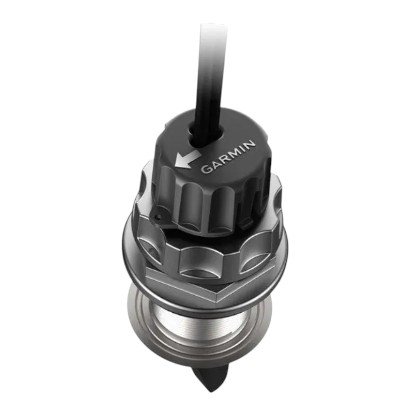

The Garmin Panoptix™ PS51-TH is a premium multibeam thru-hull transducer designed for collision avoidance and real-time navigation. It features FrontVü™ forward-looking sonar, which helps prevent running aground by providing instant feedback of the seabed profile and obstacles ahead of the vessel.
Collision Avoidance: Delivers nearly instant feedback to give the captain more time to react in unfamiliar or poorly charted waters.
Narrow Beam Focus: Uses a narrow 20-degree beam to focus specifically on the bottom directly in front of the hull, reducing confusion from side reflections.
Motion Stabilization: Includes an internal AHRS (Attitude Heading Reference System) to stabilize the sonar image on the chartplotter, even in rough sea conditions.
High-Speed Durability: The stainless steel thru-hull mount is built to withstand speeds up to 45 knots, though the FrontVü™ collision avoidance feature is most effective at speeds up to 8 knots.
| Specification Category | Technical Detail |
|---|---|
| Operating Frequency | 417 kHz |
| Transmit Power | 96 W |
| Maximum Range (Forward) | 300 ft (91 m) — Typically 8 to 10 times current depth |
| Maximum Depth | 300 ft (91 m) |
| LiveVü Forward Range | 100 ft (30 m) |
| Beamwidth | 120° x 20° |
| Sonar Type | Multibeam Phased Array |
| Stabilization | Internal AHRS (Attitude Heading Reference System) |
| Feature | Specification |
|---|---|
| Dimensions | 1.58″ x 7.58″ (40 x 192.5 mm) |
| Weight (Transducer Only) | 1.54 lbs (0.7 kg) |
| Weight (With Hardware) | 1.8 lbs (0.8 kg) |
| Mounting Type | 2-inch (50.88 mm) Stainless Steel Thru-hull |
| Hull Compatibility | GRP (Fiberglass), Steel, Solid Wood, Plywood |
| Power Input | 10 – 35 Vdc |
| Power Usage | 9 W (Typical); < 1.2A @ 12V |
| Fuse Requirement | 4.0 A |
| Water Rating | IPX7 |
| Temperature Range | 0°C to 50°C (32°F to 122°F) |
Network Port: 1 x Garmin Marine Network™ (Large RJ45 Connector).
Cable Lengths: 6 ft (1.8 m) Power Cable; 6 ft (1.8 m) Ethernet Cable; 50 ft (15 m) Ethernet Extension.
Speed Rating: Withstands speeds up to 45 knots; FrontVü™ operation is recommended at speeds up to 8 knots for effective obstacle avoidance.
Deadrise Support: Supports hulls with a deadrise of 12° to 20° using the included fairing block.
Data Provided: Depth, Water Temperature, and Real-time Sonar imagery.
Panoptix PS51-TH forward thru-hull transducer
Stainless steel thru-hull mounting hardware
High-performance fairing block
Blanking plug (for maintenance when the boat is hauled)
Documentation
