Technical Specification

Specifications

Antenna

Peak Output Power

Depending on the selected Antenna Unit (See DRS Antennas)

Type

Compatible Antenna Unit: DRS4DL+, DRS4DL*/4D*/6A/12A/25A X-Class, DRS2D/4D/6A/12A/25A-NXT
* The DRS4D/4DL X-Class does not comply with RED, UKCA or ISED regulations.

Range Scales

0.0625 to 36 NM (DRS4DL+, DRS4DL X-Class)
0.0625 to 48 NM (DRS4D X-Class, DRS2D/4D-NXT)
0.0625 to 72 NM (DRS6A-NXT)
0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT)

Display

Display Unit

10.4-inch Color LCD
12.1-inch Color LCD

Display Modes

Head-up, Course-up, North-up, True motion, Stern-up

Other Mode / Functions

Risk Visualizer™
Target Analyzer™ (DRS-NXT Radar Sensors only)
Fast Target Tracking™
True Echo Trail
Echo Average
Sub Display Unit (2 units max)
Bird Morde (Excluding DRS4DL X-Class, DRS4DL+)
AIS Display

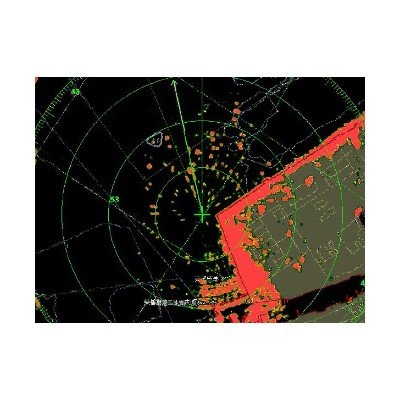

Radar Overlay on Charts (FR-12: Option)

Power Supply

Power Supply / Consumption Current

FR-10: 12-24 VDC: 1.1-0.6 A
FR-12: 12-24 VDC: 1.7-0.9 A
