The FURUNO FE-700 is a digital navigational echo sounder designed for SOLAS vessels, used to continuously measure the depth of water beneath a ship for safe navigation—especially in shallow waters.
| Parameter | Specification |
|---|---|
| Display Type | 6.5-inch color TFT LCD |
| Resolution | 320 × 234 pixels |
| Echo Presentation | 8 colors or 8-level monochrome |
| Frequency | 50 kHz / 200 kHz or alternating dual frequency |
| Output Power | 600 W rms |
| Beam Width | 35° (50 kHz), 6° (200 kHz) |
| Depth Range (Scale) | 5, 10, 20, 40, 100, 200, 400, 800 m |
| Minimum Depth | 0.5 m (200 kHz), 2.0 m (50 kHz) |
| Depth Accuracy | ±2.5% of full scale |
| Digital Depth Display | Resolution: 0.1 m (<100 m), 1 m (>100 m) |
| Draft Adjustment | 0–30 m (0.1 m steps) |
| Pulse Repetition Rate (PRR) | 750 (5–20 m), 375 (40 m), 150 (100 m), 75 (200 m), 42 (400–800 m) pulses/min |
| Display Modes | Navigation, History, DBS, Logbook, OS Data |
| Echo Time Scale | Adjustable (approx. 15-minute display window) |
| Memory Capacity | 24-hour data storage (record every 5 sec) |
| Playback Function | Yes (5 sec / 1 min / 2 min intervals) |
| Auto Functions | Auto gain, auto range, auto pulse length |
| Alarm Functions | Shallow depth, bottom lost, power failure |
| Interfaces | NMEA / external nav input (position, speed, time) |
| Power Supply (AC) | 100–115 / 200–230 VAC, 50/60 Hz |
| Power Supply (DC) | 24 VDC (−10% to +30%) |
| Power Consumption | Approx. 20 W / 20 VA |
| Operating Temperature | −15°C to +55°C |
| Humidity | Up to 93% (non-condensing) |
| Waterproof Rating | Display: IPX5, other units: IPX2 |

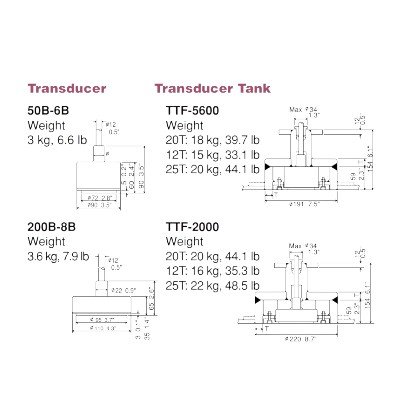

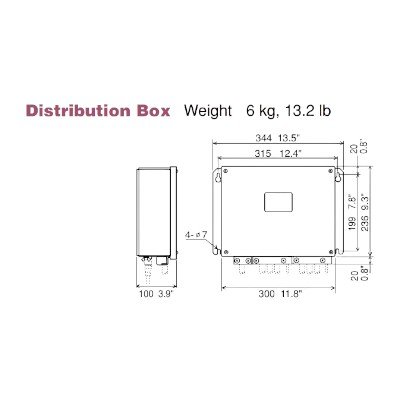

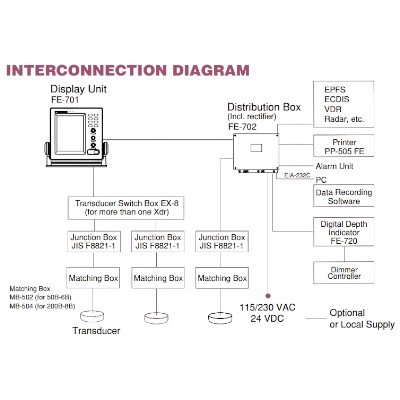

| System Components | Display unit, distribution box, matching box, transducer |
| Optional Equipment | Printer, digital depth indicator, transducer switch box |
| Compliance | IMO MSC.74(69), ISO standard |
