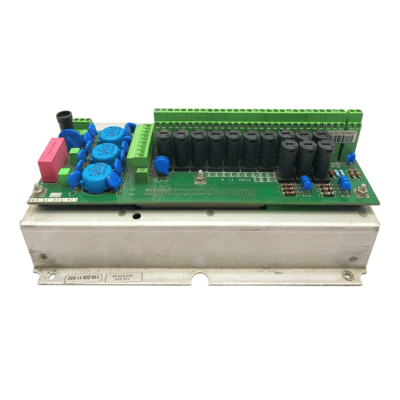

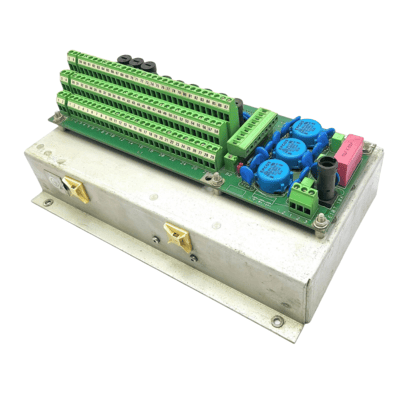

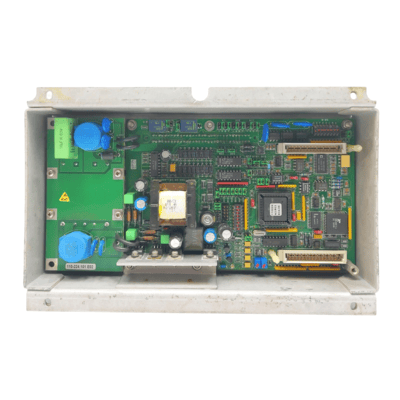

The Anschutz 110‑224.11 E02 PCB Card Module is a printed circuit board (PCB) module manufactured by Anschutz (often seen under Raytheon Anschütz brand in marine electronics).
These PCB modules are typically spare parts or replacement cards used inside larger marine navigation or gyro compass systems made by Anschütz. They aren’t general-purpose PCBs; they are specific control/interface/processing modules designed to plug into a matching rack or system.
Modules like the 110-224.11 E02 are generally part of navigation or control electronics — often found in gyrocompass, autopilot, or other shipboard electronics systems manufactured by Anschütz. They serve specific functions within that system’s electronics architecture.
Often sold on marine spares markets used/ rebuilt rather than new, because the product itself is older and specific to legacy equipment.
Supply Voltage: Interfaces with host system power (often 24 V DC in marine navigation equipment).
Signal Interfaces: Likely includes serial communication lines (e.g., RS-422/RS-232), CAN or other marine data interfaces used within gyro/distributor systems.
Power Consumption: Matches system board slot requirements; typical PCB modules in these systems draw modest current (tens to few hundreds of milliamps).
May act as interface, processing, or distribution logic inside a gyro compass or navigation distributor box (110-224 series).
Processes heading data, interfaces with sensors and repeaters, and routes data to displays or network buses.
Designed for marine onboard use (vibration, temperature variations).
PCB form factor made to fit manufacturer’s card rack/backplane.
Works within systems like Anschütz Standard 20/Standard 22 gyro compass/distribution units.
Boards are often field-replaceable modules that carry software/firmware revisions matching the system.
