$3,800.00Earn 3,800 points!

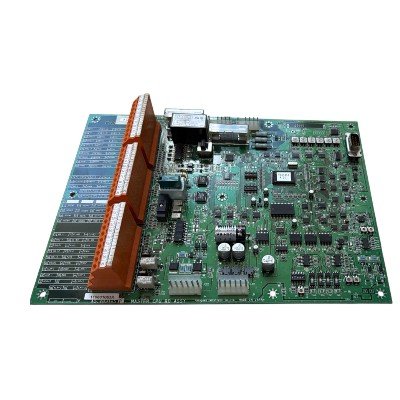

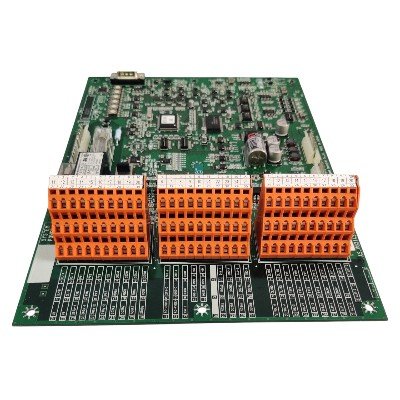

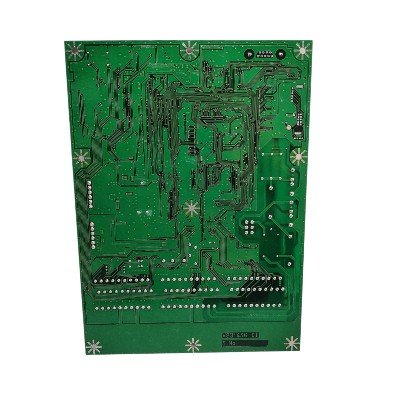

The YOKOGAWA DENSHIKIKI V8314S-F Master CPU Board Assembly (AC100V) is a genuine industrial control module used in larger Yokogawa Denshikiki automation and marine systems. It is not a complete device on its own, but rather a main processor board that fits into a system chassis or panel.
Function:
Acts as the central processing unit of a system — essentially the “brain” that runs control logic, coordinates data flows, and manages communication between sensors, inputs/outputs, and displays.
Processes and executes embedded software (firmware) for the specific control system it belongs to.
Supply Voltage: AC 100 V (primary designed operating voltage) — boards like this are powered from an AC mains source around 100 V; exact tolerance and frequency typically follow industrial power standards.
Dimensions (approx): ~245 × 230 × 30 mm (based on reseller data)
Approx. Weight: ~2.0–2.3 kg (estimated shipping weight)
Board Type: PCB assembly with electronic components and connectors for system integration.
Role: Central processing and control module — executes embedded control/logic firmware and manages I/O and communications within the system.
Interfaces: Standard industrial board edge connectors / ribbon / harness connectors used for CPU I/O signals (exact pinouts and connector types require manual or schematic).
Firmware: Pre-loaded with system-specific control firmware for the host equipment.
Installation: Board mounted inside a chassis or rack; connections to power supply, sensors, and external devices through system backplane or harness.
