The Raymarine E55040 is a 3‑pin female HSB/HSB2 Y‑cable splitter designed for use with Raymarine Pathfinder network devices, such as multifunction displays, autopilots, and other marine instruments. It allows multiple devices to share the same HSB (High-Speed Bus) or HSB2 network, enabling data communication between instruments on the same marine network.

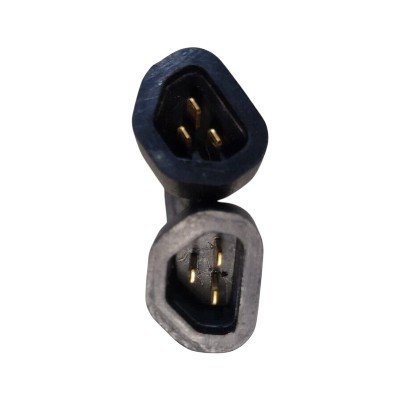

This Y‑cable features one male connector input and two female connector outputs, effectively splitting a single HSB/HSB2 bus line into two. It is commonly used in marine electronics systems where multiple displays, sensors, or autopilot controllers need to be connected to the same bus without requiring a network hub.
The cable is rugged and marine‑grade, designed to withstand the harsh conditions of a vessel’s bridge or cockpit environment. Its compact design allows easy installation in tight spaces behind panels or navigation consoles.
| Parameter | Specification |
|---|---|
| Manufacturer | Raymarine |
| Model Number | E55040 |
| Product Type | HSB/HSB2 Y-Cable Splitter |
| Connector Configuration | 1 Male → 2 Female |
| Number of Pins | 3-pin |
| Cable Type | Shielded marine-grade cable |
| Application | Connecting multiple Raymarine Pathfinder instruments to a single bus line |
| Parameter | Specification |
|---|---|
| Network Type | HSB (High-Speed Bus) / HSB2 |
| Maximum Devices per Bus | Depends on bus specification (HSB2 supports up to 16 devices per network segment) |
| Operating Voltage | 12 V DC (nominal, typical marine electronics standard) |
| Maximum Current | ≤ 1 A per branch (typical for low-power bus devices) |
| Signal Type | Digital network communication for Raymarine instruments |
| Termination | Passive splitter; does not provide active signal regeneration |
| Parameter | Specification |
|---|---|
| Connector Type | 3-pin HSB/HSB2, female (2 outputs), male (1 input) |
| Housing Material | Marine-grade plastic / UV-resistant |
| Cable Jacket | Flexible, shielded, marine-grade |
| Cable Length | ~0.2–0.3 m (short Y-cable) |
| Operating Temperature | –20 °C to +55 °C |
| Storage Temperature | –30 °C to +70 °C |
| Environmental Rating | Resistant to marine humidity, salt spray, and vibration |
