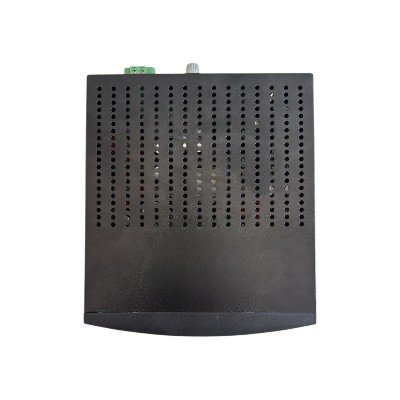

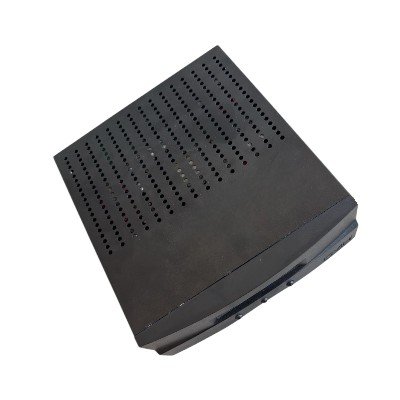

The KVH 02-1265 MCU (Master Control Unit) is the control interface and junction box used in KVH TracVision G8 marine satellite TV systems. It connects the stabilized antenna to power and receivers and provides the user control interface for setup, tracking, satellite switching, and diagnostics.
General
Model: KVH 02-1265 MCU (Master Control Unit) – for TracVision G8 system
Function: Central control, power distribution, and user interface for the TracVision G8 satellite TV system
Electrical
Input power: 9 – 36 V DC
Typical power consumption: ~90 W
Maximum power consumption: Up to 120 W
Galvanic isolation: Power to antenna is electronically isolated from MCU input power
Mechanical / Physical (MCU)
Dimensions: Approx. 7.3″ (18.5 cm) depth × 8.2″ (20.8 cm) width × 2.6″ (6.6 cm) height
Mounting: Flush or panel mount as specified in manual
Environmental
Operating temperature: –25 °C to +55 °C (–13 °F to +130 °F)
Storage temperature: –40 °C to +85 °C (–40 °F to +185 °F)
User Interface
Display: LCD screen on front panel for status menus
Control Buttons: Three front-panel buttons for menu navigation and configuration
Connectors & Interfaces
Vessel power input: Rear panel DC power connector
Antenna data/power port: Rear panel connection to TracVision G8 antenna unit
Maintenance port: Serial port (e.g., DB-9) for PC diagnostics and firmware updating
RF distribution: Pass-through RF ports to one or more satellite receivers (depending on system configuration)
