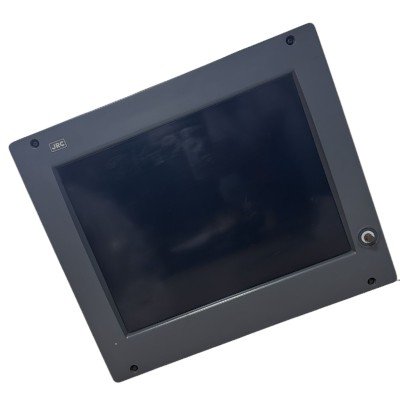

The JRC NWZ-158 is a marine-grade radar monitor/display manufactured by Japan Radio Co. (JRC). It’s designed specifically to work with JRC radar systems—most commonly the JMA-9900 series—to present radar imagery and navigation information on a large, clear screen.
This monitor is mainly installed on ship bridges as part of the main RADAR/ARPA navigation system, offering navigators a reliable way to monitor targets, weather echoes, and other radar-detected objects.
Screen Type: Color TFT LCD
Size: 23.1 inches diagonal — large format for radar presentation and situational awareness.
Brightness & Controls: Includes a dimmer allowing brightness reduction to about 1% for night-time operation.
Presentation Modes: Common radar display orientations — North-Up, Course-Up, Head-Up.
Form Factor: Desktop-type monitor with a mounting bracket included for secure installation.
Typical Shipping Dimensions (crate/box): ~71 × 71 × 41 cm (approximate).
Weight (packed/monitor): Approx. 17-25 kg depending on packaging & bracket etc.
Mounting: Standard desktop/bridge installation with bracket; bolt patterns and cut-outs are shown in technical drawings (see associated JMA-9900 manuals for precise dimensions).
Primary Power: Typically 24 V DC (common for marine navigation equipment) via a dedicated power input — matching shipboard power standards.
Video Interfaces: Direct connection to radar processor unit (interface cable harness). In some installations, auxiliary connectors like serial or VGA may be present for service/test signals (varies by system).
Control & Data: Connects to JRC radar processor/control unit (e.g., NDC-xxxx series) via proprietary radar interface cables.
Radar Systems: Designed for use with JRC ARPA/RADAR units, including JMA-9900 series X-Band and S-Band radars.
ARPA Display: When integrated with ARPA processor, it can show radar echoes, trails, NAV lines, and target tracking info.
Trails Indications: Radar trail memory functions (off/0.5/1/3/6 min).
