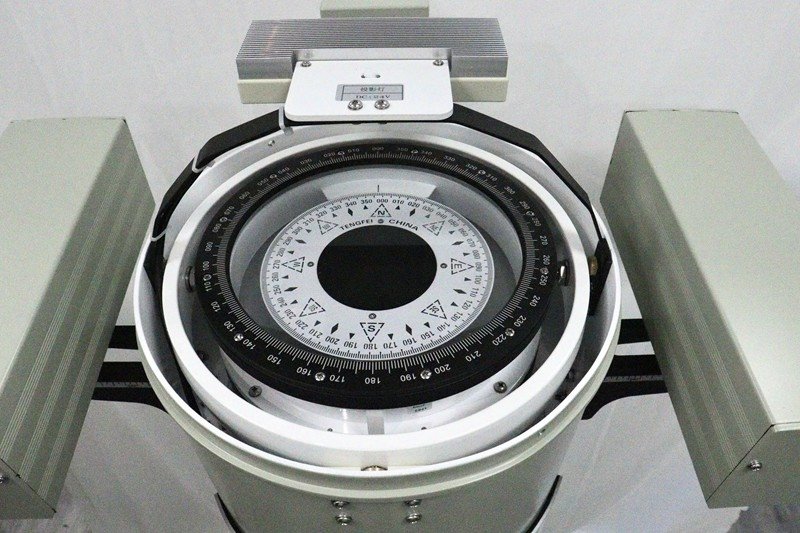

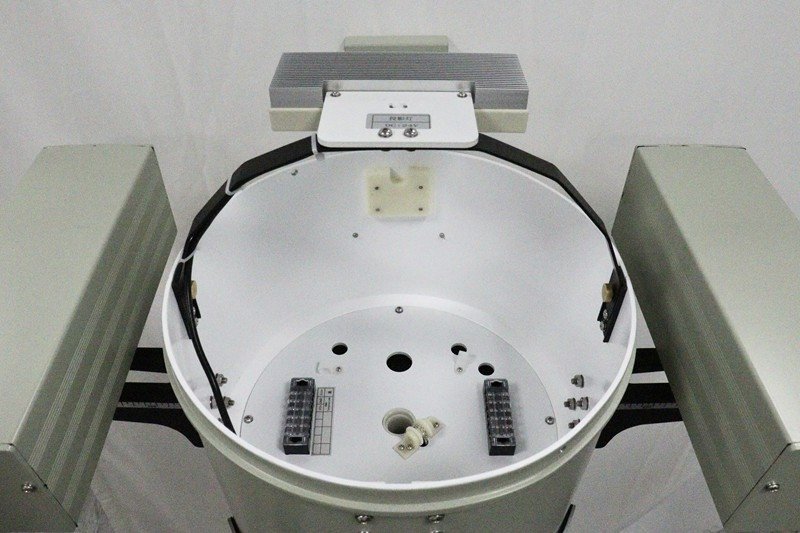

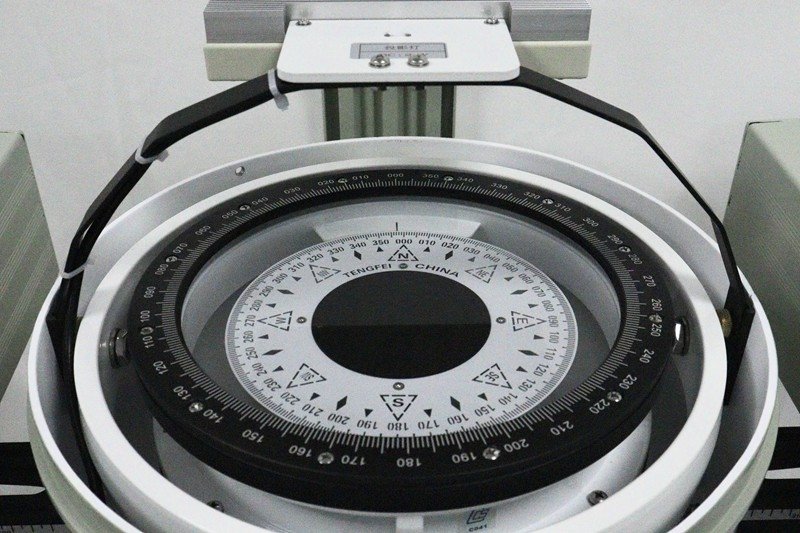

CGF-165 Projection Magnetic Compass is a sort of vertical liquid magnetic compass with excellent performance and reliable working. It is designed and manufactured in accordance with the national standard ISO () Ships and Marine Technology – Marine Magnetic Compasses, Binnacles and Azimuth Readers and completely complies with the required standard of the relevant navigation equipment regulated by ISO and IMO.
The product has the characteristics of high precision and stable performance and can be suitable for prolonged use under inclement weather at ship sailing. The projective tube is inserted in the bottom of the compass from the wheelhouse. The advantages of it are easy installation, convenient maintenance, and the ability to disassemble the cleaning imaging glass at any moment.
| Item | Data |
| Dial Diameter | Φ 165mm |
| Dial Division | 0°~360°, 1° per graduation |
| Indication Error | ≤0.5° |
| Semi-period | ≤8.28s |
| Friction Error | ≤0.08° |
| The main semicircular deviation correction of energy | 1°~45° |
| A Semicircular Deviation Correction of Energy | 1°~6° |
| Quadrant Deviation Correction | 0.5°~6° |
| Heeling Error Correction | -75 ~ +75μT |
| Barrel Extension Range | +/- 50mm |
| Disk Image Magnification | ~2x |
| Lighting Power Supply | AC220V, DC24V |
| Overall Dimensions | 760*550*1380mm |
| Carton Size | 813*578*1540mm |
| Mounting Hole Size | 420, Φ14 |
| Net Weight | 70kg |
| Weight of Packing Case | 6kg |
| Length of Projection Tube | 60mm-1200mm
The length of projection cylinder is configured according to the height of ship cab, which is suitable for the height of different ship types |
| Power Specification | AC 220V 50Hz
DC 24V |
Components of a set of instruments:
| Item | Quantity | |
| CGF-165 Binnacle Stand | 1 set | |
| CGF-165 Projector Cylinder(Optical Device) | 1 piece | |
| CGF-165 Compass Bow | 1 piece
(Independent packing in carton) |
|
| CGF-165 Illumination Controller | 1 piece | |
| CGF-165 Reflector Device(700mm) | 1 piece | |
| Rubber Packing | 1 piece | |
| Clamping Bolt | 4 groups | |
| Components for correcting | Main Semicircle Deviation Adjusting Magnetic Rod | 12 pieces |
| Tilt Deviation Adjusting Magnetic Rod | 3 pieces | |
| Sub Semicircle Deviation Correction | 11 pieces | |
| Flinders’ bar | 8 pieces | |
| Spare Parts Box | LED Light | 1 piece |
| Frosted Glass and Mirror | 1 piece each | |
| Compass Supplement | 1 bottle | |
| Horizontal Shaft Sleeve and Compass Shaft Sleeve | 2 pieces each | |
| Provision of information | Instruction manual | 1 copy |
| Asbestos free certificate | 1 copy | |
| Quality certificate | 1 copy | |
| Packing list | 1 copy | |
| CCS Certificate | 1 copy |
