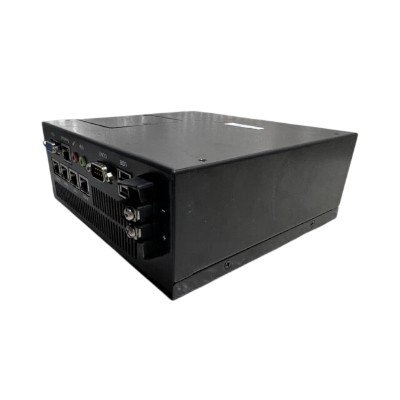

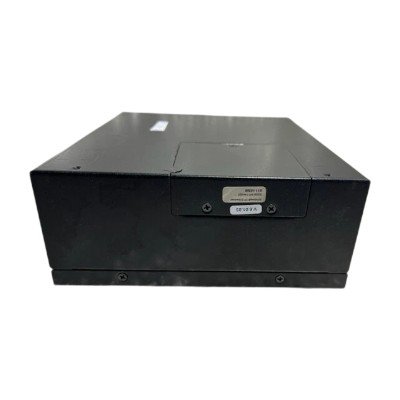

The Rutter RUT-02395 Data Management Module is a marine data interface and processing unit used to centralize, convert, and distribute navigation, sensor, and control data on board vessels. It is typically installed as part of an integrated bridge system (IBS) or navigation network where multiple sensors and systems must communicate and share information reliably.
The module acts as a gateway and protocol converter, allowing data from various marine instruments (GPS, gyrocompass, log, echo sounder, autopilot, radar, AIS, etc.) to be consolidated and routed to multiple consumers (ECS, ECDIS, displays, autopilots, GMDSS, etc.) over standard maritime data networks such as NMEA 0183, NMEA 2000, and Ethernet.
While Rutter does not publicly publish a full datasheet for RUT-02395, modules in this family generally include the following functionality:
NMEA 0183 Ports — Multiple bi-directional RS-422/RS-485 interfaces for legacy sensors
NMEA 2000 Gateway — Connects to CAN-bus marine data networks
Ethernet / IP — For integration into onboard LANs and modern navigation suites
Serial / Modbus (optional) — For industrial sensor integration
Converts between NMEA 0183 ↔ NMEA 2000
Bridges Serial ↔ Ethernet
Supports message filtering, prioritization, and data merging
Acts as central hub for navigation data
Timestamping and formatting of marine sensor data
Error detection and message validation
Data distribution to multiple clients without loss or conflict
Typically powered by 24 V DC ship power
Marine-grade construction suitable for bridge or equipment room installation
