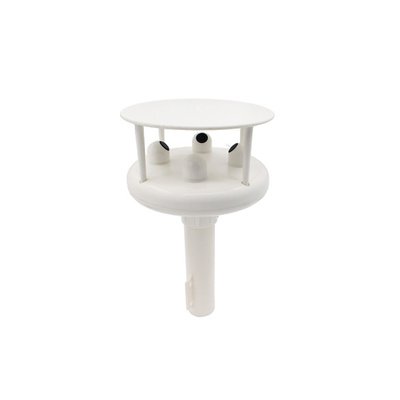

OWNA, KW-360 Weather Station Ultrasonic Anemometer

$300.00Earn 300 points!

1 in stock

SKU WC1C25010133-2021 Categories , , Tag Brand:

The ONWA KW-360 is a powerful, lightweight, and versatile ultrasonic weather station designed for applications that demand high reliability and low maintenance, particularly in the harsh marine environment. Unlike traditional mechanical anemometers, the KW-360 is a solid-state sensor that uses ultrasonic technology to simultaneously measure wind speed, wind direction (across a full range), air temperature, air pressure, and humidity (with altitude available on some models). This design means it has no moving parts, ensuring it requires no maintenance and no calibration throughout its lifespan. Encased in durable, UV-stabilized ABS plastic for maximum resistance to weather and corrosion, the unit features a wide operating voltage range and low power consumption. It communicates essential weather data digitally using standard NMEA 0183 sentences ( and ) and offers connectivity via RS232 and RS485 to interface easily with ONWA chart plotters, multi-function displays, and other compatible navigation equipment.

Technical Specification

Wind Speed

Range 0~40m/s
Precision ±2% (at 12m/s)
Resolution 0.01 m/s
Measurement Unit m/s

Wind

Range 0~359.9°
Resolution 0.1°

Temperature

Temperature Measurement Range -20°C~+75°C
Temperature Measurement Accuracy ±0.5°C (at 12m/s)
Temperature Resolution 0.1°C
Measurement Unit °C

Humidity

Humidity Measurement Range 10%~99.9%
Humidity Measurement Accuracy ±2%RH (25°C)
Humidity Resolution 0.1%RH

Pressure

Measurement Unit Pa
Measurement Range 30000~ 110000 Pa

Altitude

Measurement Unit m
Measurement Range +9000m~ 0m

 Communication Format

Hardware Interface RS232, RS485
Baud Rate 4800, 9600, 19200, 38400

Working Environment

Waterproof Grade IP65
Working Temperature 20°C~ +75°C
Storage Temperature -30°C~ +80°C
Working Humidity <5%~100%
Electromagnetic Compatibility IEC60945

Mechanical Properties

Size/Weight 165x165x140 (LxWxH)mm <1
