$850.00Earn 850 points!

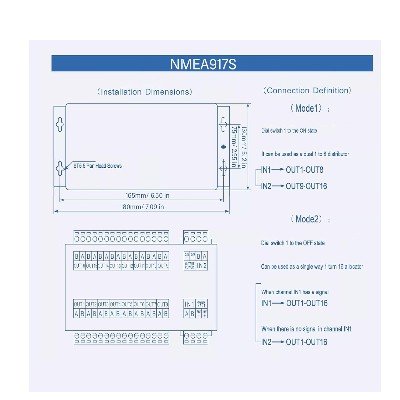

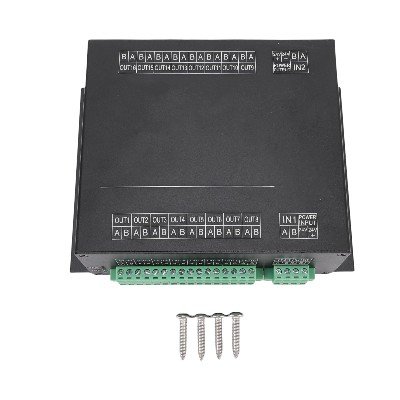

The NMEA917S is the “big brother” to the NMEA918S. It is highly versatile because it can operate in two distinct modes depending on your wiring (controlled by internal jumpers). This allows it to act either as a massive single-source distributor or as a dual-source hub that keeps two data streams completely separate within one unit.
| Feature | Specification |
| Model | NMEA917S |
| Input Channels | 2 x NMEA 0183 (Opto-isolated) |
| Output Channels | 14 to 16 x NMEA 0183 (Buffered) |
| Max Baud Rate | 115,200 bps |
| Power Supply | 18V – 33V DC (Standard 24V Marine) |
| Indicators | Power LED, Data In 1 Active, Data In 2 Active |
| Enclosure | Robust metal casing for bulkhead mounting |
| Dimensions | Approx. $289 \times 150 \times 60 \text{ mm}$ |
There are no reviews yet.
