Technical Specification

1. Above Deck Unit (ADU – Antenna)

• Antenna Type: Electronically Steered Flat Panel

• Antenna Size: 10-inch class

• Dimensions: 56 × 45 × 12 cm

• Weight: 12.2 kg

• Ingress Protection: IP66 (weatherproof marine design)

• Operating Temperature: −40 °C to +55 °C

• G/T: 9 dB/K

• EIRP (Dual Carrier): +36.6 dBW

• Interfaces:

  • F-Type RF port

  • SMA port (R-GNSS)

2. Performance

• Peak Downlink Speed: up to 75 Mbps

• Peak Uplink Speed: up to 14 Mbps

• Network: OneWeb LEO satellite constellation

• Tracking: Electronic beam steering with advanced tracking technology

• Latency: Low latency suitable for real-time communications

3. Maritime Motion Capability

Designed to operate in moderate to rough sea conditions.

• Angular rate: ~14°/s (±3°)

• Angular acceleration: 75°/s²

• Translational acceleration: ~4 m/s²

• Maximum rotational compensation: up to 17°/s (roll, pitch, yaw)

• Beam pointing error: ≤0.7° during vessel motion

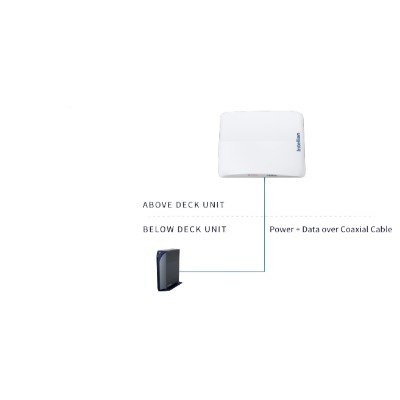

4. Below Deck Units (CNX Options)

The antenna connects to a CNX (Customer Network Exchange) unit inside the vessel.

Examples:

5. Installation

• Mounting: pole, mast, or pedestal mount

• Cable: single coax cable for power and data

• Configuration: via Intellian mobile app
