DEIF, TRI-2 Rudder Indicator

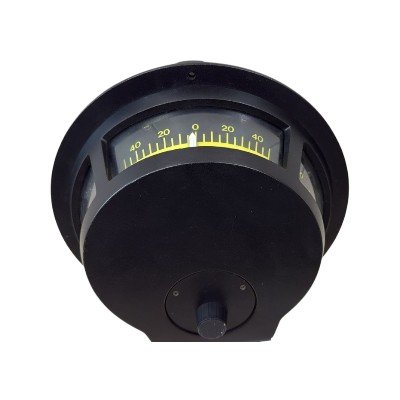

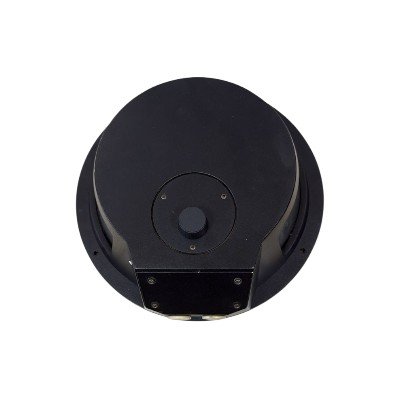

The DEIF TRI‑2 Panorama Rudder Indicator is a marine bridge instrument used on ships to display the rudder angle (rudder position) to the helmsman or bridge crew. It is typically installed overhead on the bridge so it can be seen easily from different positions. ⚓

What the TRI-2 Rudder Indicator Does

Shows real-time rudder angle (port or starboard) based on the signal from a rudder angle transmitter.
Helps the operator monitor how much the rudder is turned while steering.
Used in ship steering systems and navigation bridges.

Technical Specification

DEIF TRI‑2 Panorama Rudder Indicator – Technical Specifications ⚓

1. General Description

Type: Panorama Rudder Angle Indicator
Application: Ship bridge rudder position display
Mounting: Ceiling-mounted bridge indicator
Display: Analogue with 3 large scales / windows for panoramic viewing
Measuring Principle: Moving-coil mechanism with three pointers on a common shaft

2. Display & Viewing

Viewing angle: up to 250° panorama visibility
Reading distance: up to 5 m from indicator
Number of scales: 3 extra-large scales
Scale color: black or white
Pointer color: yellow or black (depending on configuration)

3. Electrical Specifications

Input types:
- Analogue input version
- CAN bus version (TRI-2 CAN)
Compatible signals: typically from rudder angle transmitter (e.g., 4–20 mA or voltage system)
Power consumption: < 4 W with full illumination
Start-up time: < 5 seconds from power-on to valid indication
