$1,850.00Earn 1,850 points!

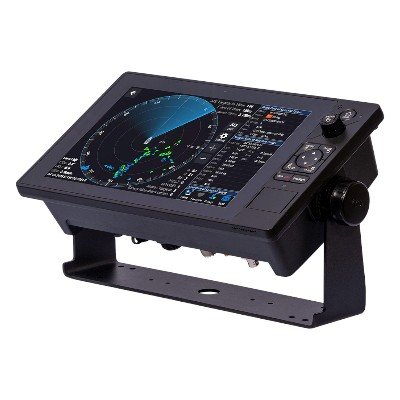

The XN60BD (10.1″) is an intelligent, Android-based Multi-Function Display (MFD) that acts as a centralized bridge workstation. It features a high-brightness, non-air-gap capacitive touch screen designed to eliminate internal fogging and provide clear visibility in direct sunlight. This model is highly “cloud-connected,” supporting OTA (Over-the-Air) software updates and real-time remote shore monitoring.
| Feature | Specification |
| Display | 10.1-inch Capacitive Multi-touch Screen |
| Resolution | 1280 x 800 pixels |
| Brightness | 1000 cd/m² (Sunlight Readable) |
| Processor | Cortex-A17 Quad-core (1.8GHz) |
| Memory / Flash | 2GB DDR3 RAM / 16GB Flash Storage |
| AIS Function | Built-in Class B AIS Transceiver (2W Output) |
| Positioning | Dual-mode GNSS (BDS B1 / GPS L1) |
| Networking | 4G (LTE), WiFi, Bluetooth 4.0, Gigabit Ethernet |
| Interfaces | 3x NMEA 0183, NMEA 2000, 1080P HDMI Output |
| Video Input | Supports 6-channel IP Camera (CCTV) |
| Storage | Dual TF card slots (up to 512GB each) |
| Power | DC 10V – 36V (Consumption: ~15W) |
