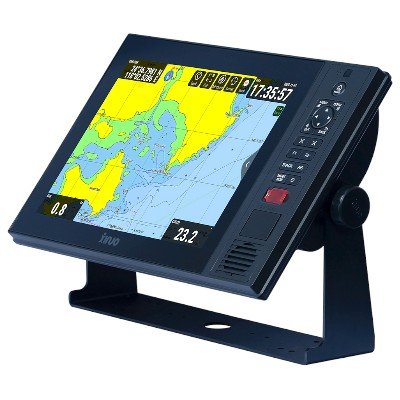

XINUO, XN60(12.1″) Multi-Function Display

$2,300.00Earn 2,300 points!

The XN60 (12.1″) is an intelligent Multi-Function Display (MFD) that runs on a specialized Android-based operating system. It features a 12.1-inch capacitive multi-touch screen with a “non-air-gap” design to prevent fogging and improve clarity. This unit is specifically designed for bridge integration, supporting everything from digital charting to AI-powered video surveillance.

Technical Specification

Feature Specification
Display 12.1-inch Capacitive Multi-touch Screen
Resolution 1024 x 768 pixels
Brightness 600 cd/m² (Standard)
Processor Cortex-A55 Quad-core (2.0GHz, 64-bit)
Memory 4GB RAM / 32GB Flash Internal Storage
AIS Function Built-in Class B AIS Transceiver (2W Output)
Positioning 72-channel Dual-mode GNSS (GPS + BDS)
Networking 4G (LTE), WiFi, Bluetooth 4.0, 1000Mbps Ethernet
Interfaces NMEA 0183 (7 ports), NMEA 2000, 1080P HDMI Out
Storage Dual TF Card Slots (Supports up to 512GB each)
Power DC 21.6V – 31.2V (Consumption: ~20W)
Camera Built-in 8MP Front Camera + 6-channel IP Camera Support

There are no reviews yet.

Be the first to review “XINUO, XN60(12.1″) Multi-Function Display”

Your email address will not be published. Required fields are marked *

Download

XN60 Series Touch Screen Multi-function Display Quick Reference (1)
