$800.00Earn 800 points!

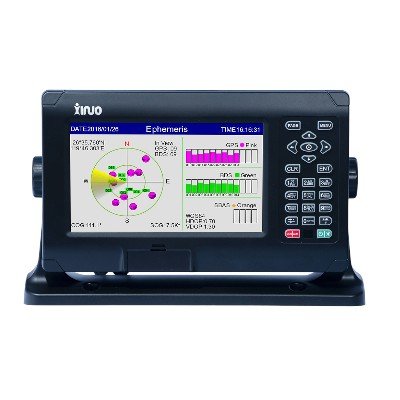

The XF-808 utilizes a dual-mode high-precision positioning system (GPS + Beidou) to provide stable and accurate coordinates. It features a high-brightness LCD with wide viewing angles, making it visible even in bright sunlight. Like other modern Xinuo plotters, it includes the Classic & Utility dual operating system, allowing users to choose between a simplified, app-like interface or a traditional, detailed navigation menu.
| Feature | Specification |
| Display | 8-inch Color TFT LCD |
| Resolution | 800 x 480 pixels (WVGA) |
| Brightness | 450 – 550 cd/m² |
| Positioning | 32 or 72-channel Dual-mode (GPS + BDS) |
| Position Accuracy | 2.5m (Combined mode); 1m with DGNSS (RTCM 2.3) |
| Memory Capacity | 10,000 Waypoints, 10,000 Markers, 200 Routes |
| Track Points | Up to 1,000,000 points (highly detailed voyage history) |
| Chart Support | XINUO-MAP (Built-in) & C-MAP MAX (via SD Card) |

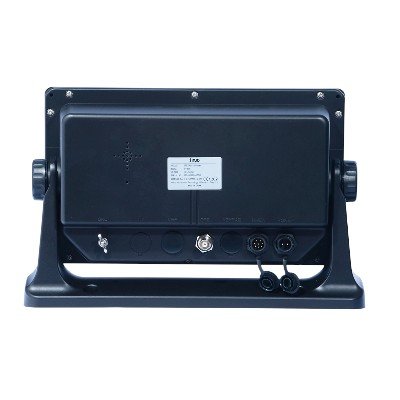

| Interfaces | 2x NMEA 0183 In / 2x NMEA 0183 Out |
| Power Supply | DC 10V – 36V |
| Power Consumption | ≤ 8W (at 24V DC) |
| Waterproof | IPX6 / IP65 (Front panel) |
