$1,300.00Earn 1,300 points!

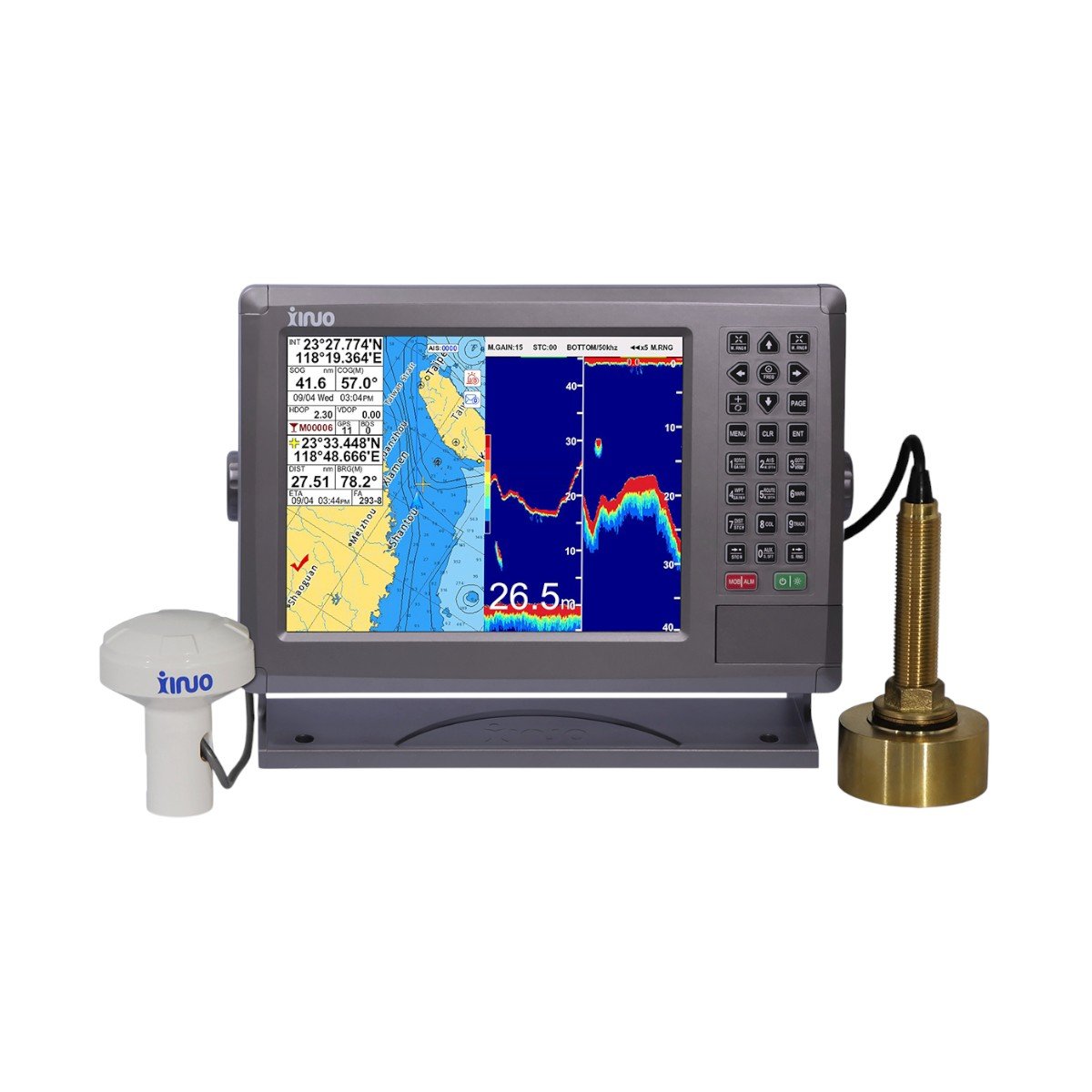

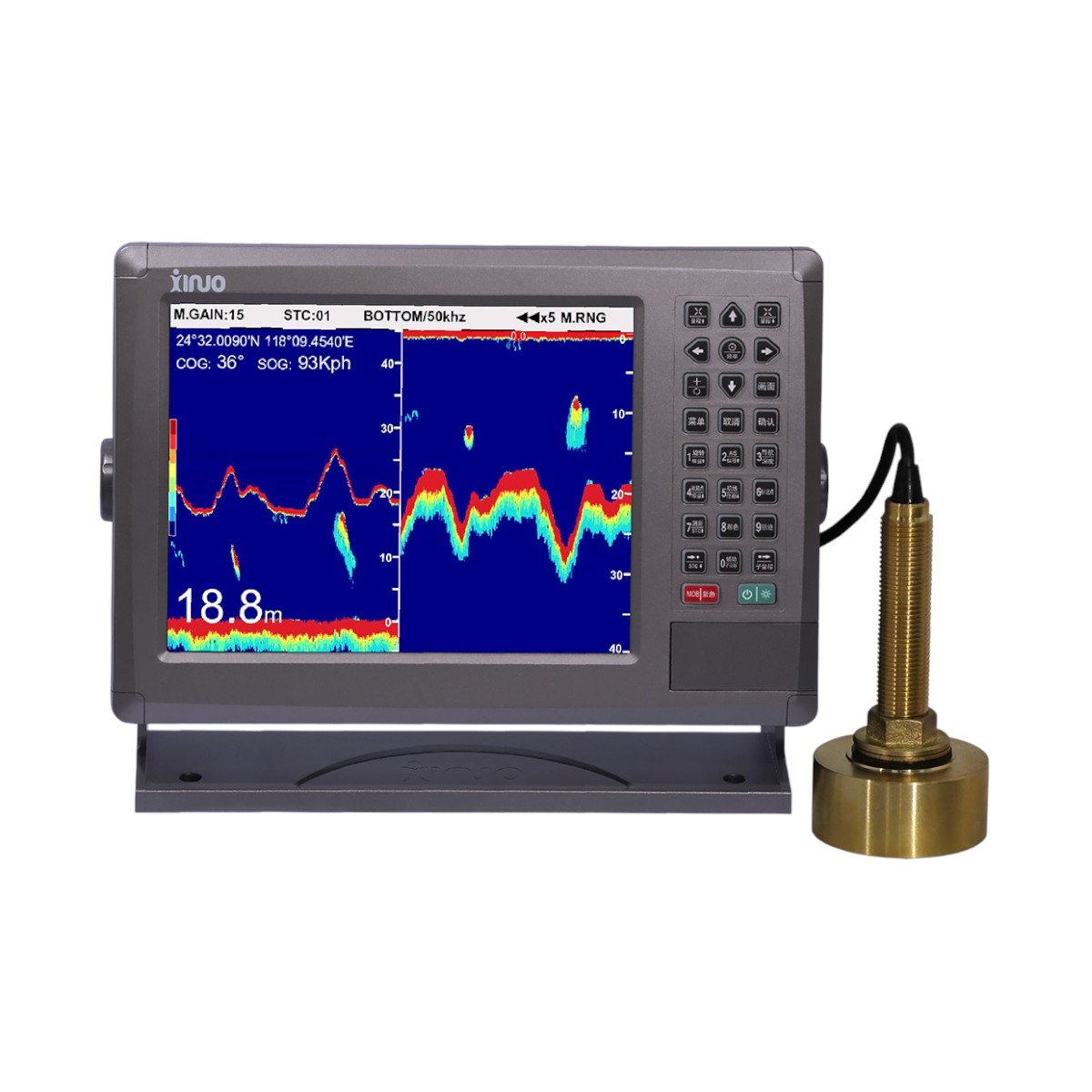

The XF-1069GF is designed for professional fishermen who require a large-format display to monitor both their navigation charts and underwater sonar returns simultaneously. It features a high-resolution SVGA display and utilizes Digital Signal Processing (DSP) to provide clear target separation of fish and bottom structures. It supports dual-frequency operation and includes Xinuo’s signature Classic & Utility dual operating system.
| Feature | Specification |
| Display | 10.4-inch Color TFT LCD |
| Resolution | 800 x 600 pixels (SVGA) |
| Brightness | 300 – 350 cd/m² |
| Fish Finder Frequency | Dual: 50kHz & 200kHz |
| Sonar Power Output | 600W (RMS) |
| Depth Range | 1.2m to 600m (Auto or Manual scaling) |
| GNSS Positioning | 72-channel Dual-mode (BDS B1 + GPS L1) |
| Memory Capacity | 10,000 Waypoints, 10,000 Markers, 200 Routes |
| Track History | 800 Tracks (up to 1,600,000 points) |
| Interfaces | 2x NMEA 0183 Out, 2x NMEA 0183 In (supports AIS input) |
| Power Supply | DC 12V – 36V |
| Waterproof | IP65 (Front Panel)1650 |
