$1,200.00Earn 1,200 points!

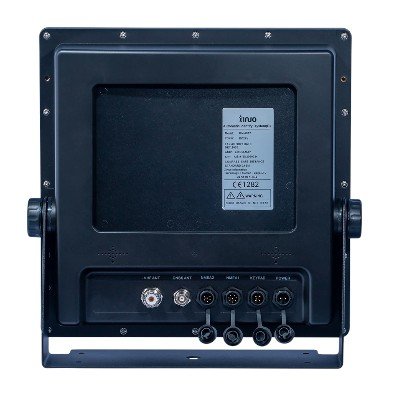

The HM-5912N features a 12.1-inch SVGA color LCD. Unlike standalone plotters, the “N” series is specifically optimized for AIS functionality, featuring a built-in 2W Class B module. It supports the Classic & Utility dual operating system, allowing users to choose between a professional menu-driven interface or a modern, icon-based “app” style. It is CCS (China Classification Society) certified, making it suitable for regulated commercial use.
| Feature | Specification |
| Display | 12.1-inch Color TFT LCD |
| Resolution | 800 x 600 pixels (SVGA) |
| Brightness | 400 – 500 cd/m² (Sunlight Readable) |
| AIS Type | Built-in Class B Transponder (Transmit & Receive) |
| AIS Power Output | 2W |
| GNSS Receiver | 72-channel Dual-mode (BDS B1 + GPS L1) |
| Position Accuracy | 2.5m (GPS+BDS); 1.0m with DGNSS |
| Memory Capacity | 50,000 Waypoints, 50,000 Markers, 500 Routes |
| Track History | 1,000 Tracks (up to 1,600,000 points) |
| Interfaces | 1x AIS Out, 2x NMEA 0183 Out, 3x NMEA 0183 In |
| Networking | Built-in WiFi for OTA software updates |
| Waterproof | IP65 (Front Panel) |
