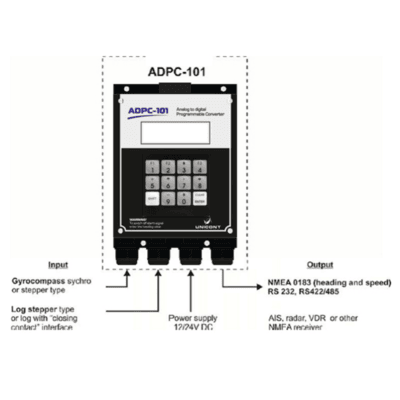

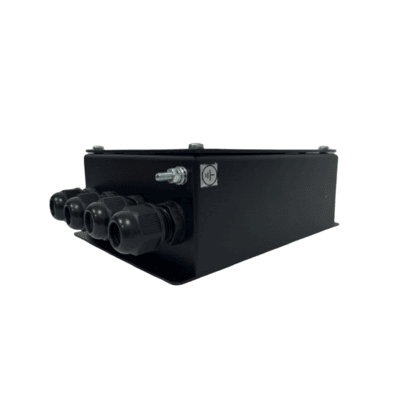

The Product ensures Analog-digital conversion of obsolete signals from gyrocompasses and logs in NMEA 0183 sentences and transmission of these data to the corresponding navigational equipment. The Product is used on the ships equipped with gyrocompasses and logs. They do not output current data in NMEA 0183 sentences (IEC 61162) to navigational equipment, which requires course and speed data in digital format. The Product may be installed on communication ships due to their re-equipping with automatic identification system and act as a connecting device converting data from obsolete compasses and logs.

• Acceptance of the current value of the course, from the gyrocompass with the synchro or stepper interface ;
• Acceptance of the current value of the speed of the lags with stepper interface or on the ‘closing ‘ contact ;
• Indication of the current speed and course on the built-in display ;
• Converting the data in NMEA- 0183 format (IEC- 61162 );
• Transfer the converted values of the course and speed, and the speed of rotation of the vessel via a standard interface ( RS-232 and RS-422/485) external devices in NMEA-0183 format (IEC- 61162 ) .
