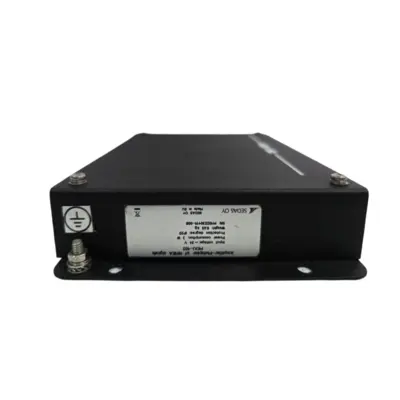

The UNICONT MDU-102 is a marine NMEA 0183 buffer and data multiplier. It takes NMEA 0183 signals from one or two sources (RS-232, RS-422/485) and reliably distributes them to eight isolated outputs for use by multiple navigation and communication systems on a ship. It features automatic input switching, checksum testing for data integrity, and galvanic/opto isolation for robust and interference-free data distribution
| Parameter | Value |
| Electrical specifications | |
| Input voltage, DC, V | 24 (10 to 36) |
| Max. power consumption, W | 3 |
| Galvanic isolation from power mains | + |
| Reverse polarity protection | + |
| Overvoltage protection | + |
| Inputs | |
| Number of input ports, pcs. | 2 (“CH1”, “CH2”) |
| Supported interfaces | RS-232, RS-422/485 |
| Max. baud rate, bit/s | 115200 |
| Optoisolation of inputs | + |
| Outputs | |
| Number of output ports, pcs. | 8 (2×4) |
| Number of output groups | 2 (“A” and “B”) |
| Output optoisolation | 4 non-isolated
4 isolated |
| Supported interfaces | RS-232, RS-422/485 |
| Max. baud rate, bit/s | 115200 |
| General specifications | |
| Overall dimensions, mm | 194×119×31 |
| Protection degree | IP22 |
| Limiting temperature, °С | –60 to +70 |
| Operating temperature, °С | –15 to +55 |
| Weight, kg | 0.65 |
