UHF 3 Way Splitter Adapter Socket Type T UHF Male to 2 Dual UHF Female PL259

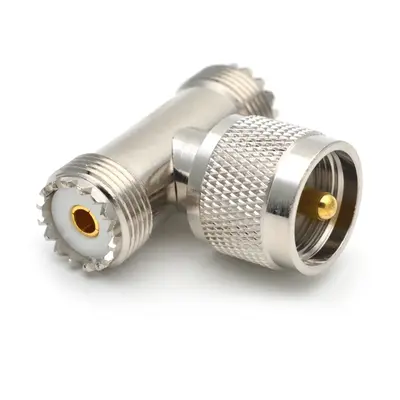

A UHF 3-Way Splitter Adapter is a T-shaped coaxial connector used to split a single RF (radio frequency) signal into two separate outputs, or to combine two signals into one. This specific type has a UHF male (PL-259) connector on one end and two UHF female (SO-239) connectors on the other ends, giving it its distinct “T” shape.

Key Description Points

Function: It serves as a signal splitter for radio equipment. For instance, it can connect one antenna to two different receivers or radios, or it can be used to combine the signals from two antennas into a single input on a radio.
T-Shape: The body of the adapter is shaped like a “T” to facilitate the branching of the signal. This design is also space-saving and makes for a neat installation in a crowded radio setup.
Connector Configuration: It has a male PL-259 plug on one end, which connects to a device or cable with a female SO-239 socket. On the other two ends of the “T” are female SO-239 sockets, which accept male PL-259 plugs from other cables or equipment.

Technical Specification

Impedance: 50 ohms. Like all UHF connectors, this adapter has a non-constant impedance, meaning its performance can degrade at higher frequencies.
Frequency Range: Best suited for HF and VHF applications, typically up to 100-300 MHz. While some devices may be rated for higher frequencies, signal loss and reflections become more significant due to the connector design.
Power Handling: Typically rated for up to 50 watts, though some high-quality models may handle more. The power rating can be a critical factor, especially when using the adapter to combine signals from high-power transmitters.
Insertion Loss: The loss in signal power as it passes through the splitter. For a 3-way splitter, the signal is divided, resulting in an inherent loss of around 4.8 dB on each output, which is a physical consequence of the power division. There’s also a small additional insertion loss, typically less than 1.0 dB, due to the physical components of the splitter itself.
Isolation: The amount of signal power that leaks from one output port to another. High isolation is desirable to prevent interference between connected devices. A typical specification for a quality UHF splitter is >20 dB of isolation.
Voltage Standing Wave Ratio (VSWR): A measure of how well the adapter’s impedance is matched to the system. A lower VSWR (e.g., <1.3) indicates a better match and less signal reflection.

Mechanical and Environmental Specifications

Connector Type: One UHF Male (PL-259) and two UHF Female (SO-239) connectors.
Materials:
- Body: Usually nickel-plated brass for corrosion resistance and durability.
- Center Pin: Often made of gold-plated brass for excellent conductivity.
- Insulator: PTFE (Teflon) is used in higher-end models for its superior dielectric properties, while less expensive versions may use a phenolic insulator.

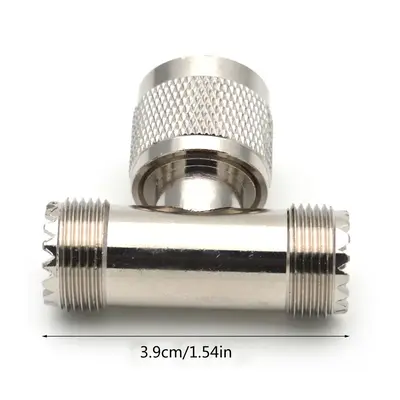

Dimensions and Weight: These vary significantly by manufacturer and specific design.
Operating Temperature: A common range is -25°C to +55°C, but can be wider for military or high-quality commercial-grade units.
Weatherproofing: This type of adapter is generally not weatherproof and should be used in a protected environment unless specifically designed for outdoor use with proper sealing.
