The horizontal amplifier board amplifies low-level horizontal signals from the gyro’s control or oscillator circuits.
It drives the horizontal elements of the gyroscope assembly (typically the torque motor or rotor positioning mechanism).
Essentially, it ensures that the gyro rotor or gimbal assembly moves accurately according to control signals, maintaining precise heading output.
Without the horizontal amplifier, the gyro’s horizontal axis cannot be properly driven, resulting in inaccurate or unstable heading readings.
Acts as a critical interface between the gyro sensor and control electronics.

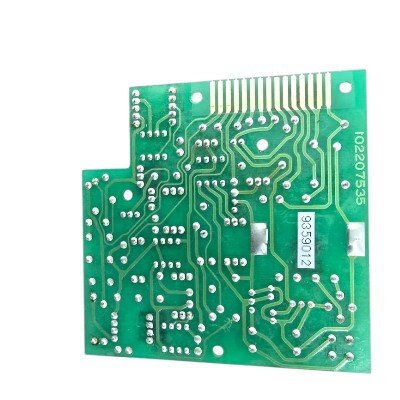

Type: Horizontal Amplifier (Horiz. AMP.) Circuit Board
Function: Serves as a key internal component inside the TG‑5000 gyrocompass.
Role in System:
Amplifies low-level horizontal signals from the gyro’s control circuits.
Drives the horizontal axis of the gyro rotor or torque motor with precise current/voltage pulses.
Ensures accurate horizontal positioning of the gyroscope for reliable heading output.
Provides protection for the gyro electronics against overcurrent or thermal stress.
Nature: Not a standalone device; it cannot operate independently — it functions only as part of the TG‑5000 system.
Criticality: Essential for the proper operation of the TG‑5000, as malfunction of this board would cause heading errors or complete loss of gyro operation.
