Product Description:

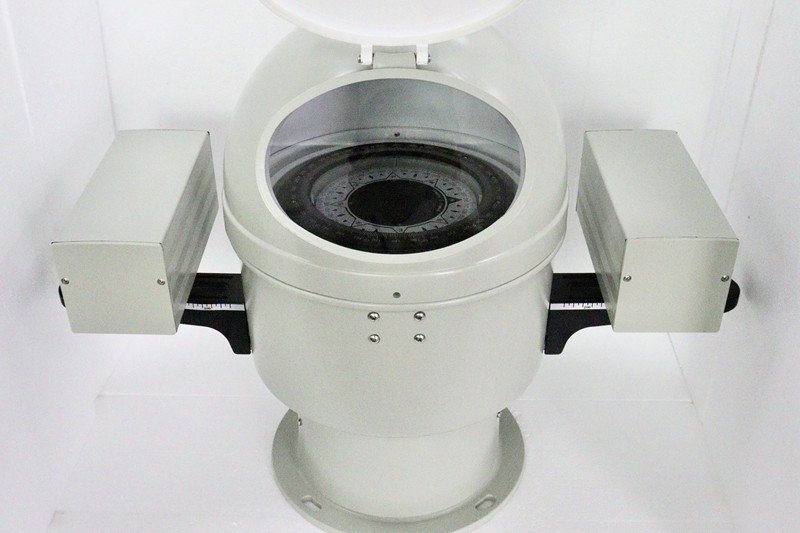

This magnetic compass is an excellent performance, reliable work liquid magnetic compass designed and manufactured in accordance with the national standard GB/T14108-2022《General Technical Terms of Marine Magnetic Compass Class A》 and completely accord with the demand and standard of the relevant navigation equipment regulated by ISO449 and IMO. The magnetic compass is suitable for the large, middle, small vessels acting as standard compass or steering compass, the product has the characteristics of high precision and steady performance and can be used for long time under inclement weather at ship sailing.
Technical Parameters:
| Item | Data |
| Dial diameter | Φ165mm |
| Dial graduation | I’ for each grid |
| Using temperature | – 30°C~60°C |
| Pointing deviation (H=38μT, T=20+-30°C) | ≤0.5° |
| Half period (H=38μT, T=20+-30°C) | ≥8.27S |
| Friction division (H=38μT, T=20+-30°C) | ≤0.08° |
| Main semicircle self heterodyne correcting energy | 1° ~ 45° |
| Secondary semicircle self heterodyne correcting energy | NO |
| Quadrant self heterodyne correcting energy | 0.5° ~ 10° |
| Inclining self heterodyne correcting energy | -75 ~ +75μT |
| Lighting power | AC 100~240V (50Hz~60Hz)
DC 24V |
| Item | Quantity | Specification (Unit:mm) | |
| Magnetic compass | 1 | ||
| Lighting control box | 1 | With mounting screws only for CPL-165 | |
|
Calibration fittings (fittings case) |
One Set |
Main semicircle heterodyne adjusting magnetic bar
Φ 6 x 100 |
12 pieces |
| Quadrant self heterodyne adjusting pure iron sheet
100 x 235 x 0.5 |
11 pieces | ||
| Inclining self heterodyne adjusting magnetic bar | Φ7.5 x 50 (1 piece)
Φ7.5 x 75 (1 piece) |
||
| Secondary semicircle self heterodyne correcting
Flinder’s iron bar only for CPL-165 |
Φ5 x 500 (3 piece)
Φ5 x 350 (2 piece) Φ5 x 250 (3 piece) |
||
| Spare
Parts |
Lighting bulb | 1 piece | |
| Compass replenishing liquid | 1 piece | ||
| Gimbals shaft sleeve and compass bowl shaft sleeve | PC 2 pieces | ||
| Injection hole sealing ring | 1 piece |
