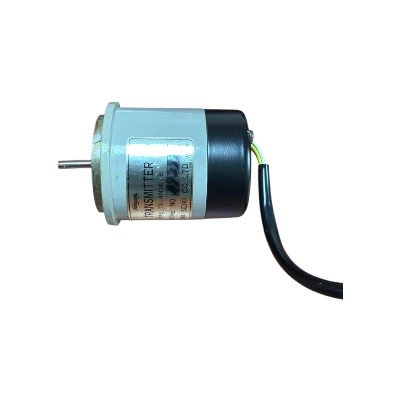

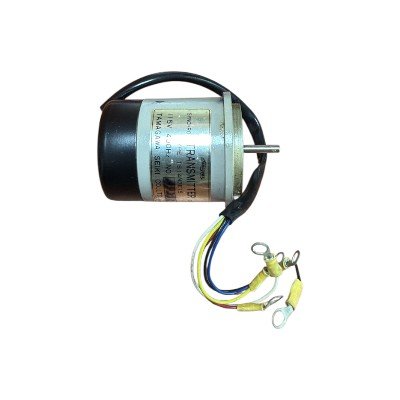

TAMAGAWA TS14N3E15 is a synchro device (a type of rotary electrical transformer used for transmitting angular position) made by TAMAGAWA SEIKI, a Japanese precision motion control manufacturer.
| Feature | Specification |
|---|---|
| Function | CX (Control Synchro) |
| Input Voltage | 115 Vrms |
| Input Frequency | 400 Hz |
| Transformation Ratio | ~0.783 ± 3% |
| No-Load Current | ~85 mA max |
| Electrical Error | ±18 minutes max |
| Residual Voltage | ≤ 125 mV rms |
| Temperature Rise | ≦ 30 °C |
| Insulation Resistance | ≥ 100 MΩ (DC 500 V) |
| Dielectric Strength | ≧ 900 Vrms for 1 min |
| Friction Torque | ≤ ~4.9 × 10⁻⁴ N·m |
| Mass | ~180–250 g (max) |
