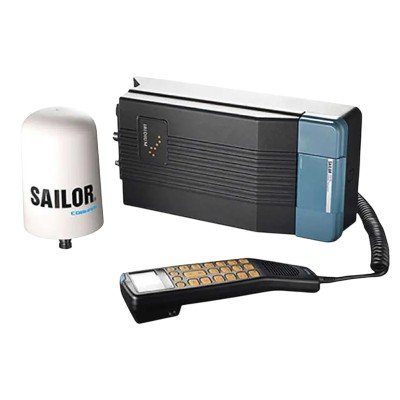

Sailor, SC4000 Iridium Satellite Fixed Telephone System.

$4,500.00Earn 4,500 points!

1 in stock

The Sailor SC4000 Fixed Satellite Phone system and Iridium offers exceptional voice and data communications without distortion, signal delays, immobility or inconvenient links. The Iridium system, on which the SC4000 operates, is the first truly global communications system, which means that no matter where you are and who you want to call, you always have 66 Low Earth Orbit satellites at your disposal. This is not only convenient, but, more important, a crucial safety factor.

The SC4000 is well-suited for all types of vessels from fishing boats, cargo ships, powerboats, yachts and cruise liners; even in remote areas, both on land and at sea. Whether you are relaxing on a yacht, working on a commercial vessel, or sitting in a remote office the SC4000 puts you in closer contact with the world.

The SC4000 provides flexibility in installation and, ease-of-use while withstanding the harshest conditions. As one of the smallest and most compact satellite communications systems designed for any environment, the Sailor SC4000 is a cost-effective complement or convenient alternative to conventional communications.

Technical Specification

TECHNICAL SPECIFICATIONS

Frequency Range

Parameter Specification
Terminal – Satellite 1616 – 1626.5 MHz (L-Band)
Intersatellite 23.18 – 23.38 GHz (Ka-Band)

Modulation

Service Specification
Voice / Data 2.4 kbit/s O-QPSK
Compressed Data 10 kbit/s O-QPSK

Power Specifications

Parameter Specification
Power Supply 10 – 32 V DC
Power Consumption (Transmit) 25 W
Power Consumption (Stand-by) 8 W

Environmental Conditions

Parameter Specification
Operating Temperature (ADE) −35°C to +55°C
Relative Humidity Up to 95% at 40°C
Icing (Survival Only) Up to 25 mm
Precipitation Up to 100 mm/hour
Wind Velocity Up to 100 knots
Vibration (IME) 2 – 50 Hz ±1 g
Vibration (EME) 4 – 33 Hz ±1 g

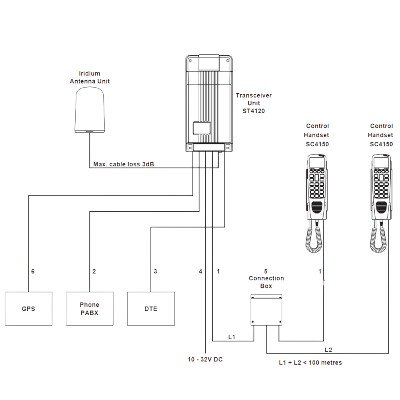

ST4120 TRANSCEIVER UNIT

Interfaces

Interface Specification
Handset RS-485, 8-wire, 600 Ω
Telephone / PABX RJ-11, 2-wire, 600 Ω
Data (PC) RS-232 (standard serial)
Position Information NMEA 0183
Set-up / SMS Configuration Via PC connection and software

Physical Characteristics

Parameter Specification
Dimensions (H × W × D) 309 × 150 × 87 mm
Dimensions (inch) 12.2 × 5.9 × 3.4 in
Weight 2.7 kg (6 lbs)
Document Reference 71-123601-B00 / 02.13 MBU

SC4150 CONTROL HANDSET

Parameter Specification
Dimensions (H × W × D) 68.5 × 209 × 66.5 mm
Dimensions (inch) 2.7 × 8.2 × 2.6 in

SA4110 ANTENNA UNIT

Parameter Specification
Antenna Type Helical, omnidirectional
3 dB Bandwidth 210°
Antenna Dome Fiberglass
Link Margin 16 dB
Elevation Angle 20° from horizontal (all directions)
Yaw Requirement Satellite elevation > 8°
Diameter 96 mm (3.8 in)
Height 140 mm (5.5 in)
