Function / Purpose

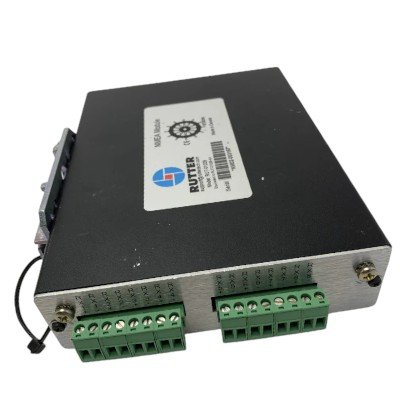

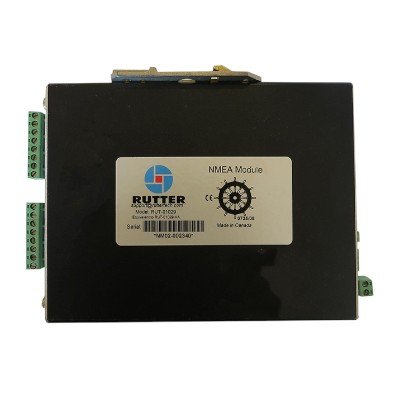

It’s an NMEA 0183 / IEC 61162 input module used in Rutter VDR (Voyage Data Recorder) systems.
Specifically, it supports 8 serial NMEA-0183 input channels, allowing multiple navigation data sources (e.g. GPS, AIS, depth, speed) to be multiplexed / recorded.
According to the VDR-100G2 installation manual, the NMEA module is configured via a configuration utility over Ethernet.
The manual says you “select the number of NMEA channels (4, 8, or 4 with VHW)” when configuring.
Model: RUT-01029 (sometimes suffix “-AA”).
Function: NMEA 0183 input module, 8 channels (8 x NMEA inputs) for a Voyage Data Recorder (VDR) system.
Application: Suitable for use with VDR systems like Rutter 100G2 / 100G2S / 100G3 etc.
Input channels: 8 separate NMEA 0183 input ports. (Hence “8-port NMEA converter module”).
Power / Electrical: The listing mentions “Power …” but full voltage/current spec not clearly published in available sources.
Condition / Notes: Many of the available items are used/refurbished, indicating the module is older.
Mounting / Location
The NMEA module is part of the DAU (Data Acquisition Unit).
The DAU (with NMEA + other modules) has mechanical dimensions listed in the installation manual: 400 × 600 × 150 mm (H × W × D).
Weight of DAU (which includes the NMEA module) is: 16.8 kg.
