$2,300.00Earn 2,300 points!

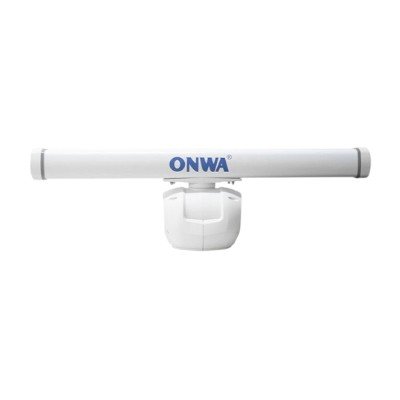

The KRA-R25W represents ONWA’s entry into the high-performance pulse compression market. By using long-pulse compression and frequency modulation, it achieves the range of a powerful 4kW magnetron while using much less power. It is particularly effective at identifying small targets (like buoys or kayaks) in heavy rain or sea clutter.
| Feature | KRA-R25W Technical Data |
| Technology | Solid-State Pulse Compression (No Magnetron) |
| Peak Power | 25 Watts (Equivalent to 4kW traditional pulse) |
| Max Range | 36 Nautical Miles |
| Rotation Speed | Variable: 20 to 60 RPM (based on range/mode) |
| Horizontal Beam Width | 4.9° nominal (can be sharpened to 2.5° via software) |
| Vertical Beam Width | 25° |
| Warm-up Time | Instant On (No wait time) |
| Interface | Ethernet 100Base-T (OneNet) |
| Weight | 5.9 kg (approx. 13 lbs) |
| Power Consumption | 17–29W (Operating) / 3.9W (Standby) |
| Waterproofing | IPX6 |
