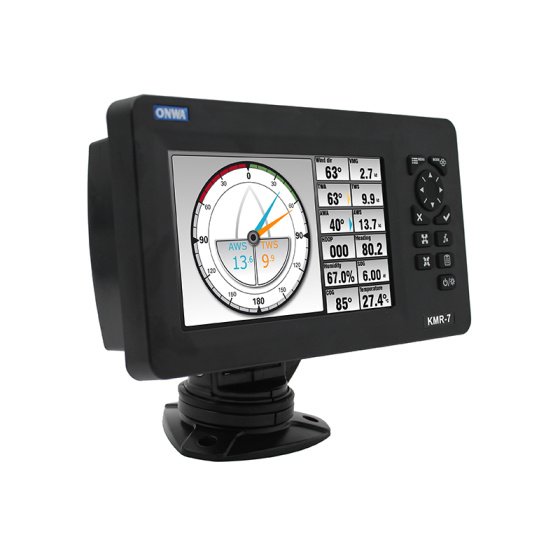

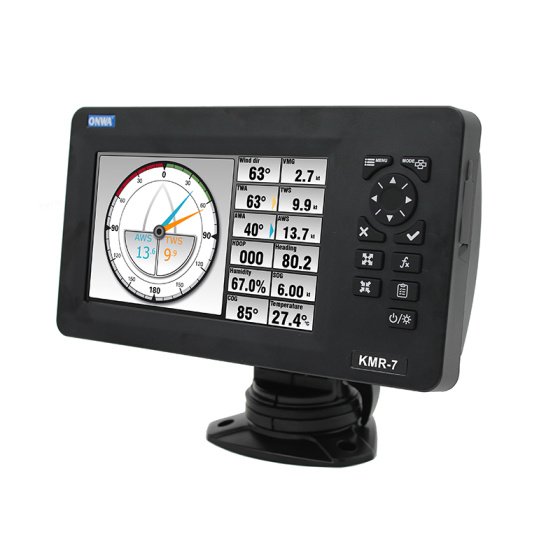

Onwa, KMR-7 – Multi-function Display w/ NMEA Multiplexer

FEATURES
- Illuminated Keypad
- 7” Display
- SD Card Slot reserved for future function
APPLICATIONS: Leisure, Commercial, Passenger

FUNCTIONS SUPPORTED

NMEA0183 MULTIPLEXER

• Provides 4 NMEA0183 Input Ports and 2 NMEA0183 Output Ports

• Mix and Combine All 4 Input NMEA0183 Sentences into 2 NMEA0183 Output Sentences

NMEA2000

Supports most major NMEA2000 PGNs.

Dimensions

Compatible Devices

Technical Specification

Output/lnput(IEC61162-1)
INPUT: 4 X NMEA0183	INPUT PORT 1 a) Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR b) Baudrate: auto scan up to 115200 INPUT PORT 2 a) Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR b) Baudrate: auto scan up to 115200 INPUT PORT 3 a) Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR b) Baudrate: auto scan up to 115200 INPUT PORT 4 a) Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR, VDO, VDM b) Baudrate: 38400
OUTPUT: 2 X NMEA0183	OUTPUT PORT 1 a. Output sentences: Selectable sentences among of the input sentences b. Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR c. Baudrate: Selectable baudrate 4800, 9600, 19200, 38400 OUTPUT PORT 2 1. Output sentences: Selectable sentences among of the input sentences 2. Support sentences: RMC, GGA, GLL, GSA, GSV, AAM, APA, APB, BOD, BWC, BWR, DBT, DPT, HDT, MTW, RMB, VTG, XTE, ZDA, MWD, VWR, VWT, MWV, XDR, VDO, VDM 3. Baudrate: 38400
NMEA2000	Tx PGNs 126992,129026,129540,128267,129029,127250,128259,129025,129539,130306,130310,130311,130312,129810, 129809,129798,129794,129793,129040,129039,129038,129041,129802,129801,129795,129797,129811,129812 Rx PGNs 126992,127237,127245,127488,127250,127489,128259,128267,129025,129026,129029, 129038,129039,129040,129539,129540,129793,129794,129798,129809,129810,130306, 130310,130311,130312,129041,129802,129801,129795,129797,129811,129812,129808, 127252,130576
Power Supply
Electrical	10.5 – 32VDC
Protection	overcurrent, overvoltage, power transient and accidental reverse polarity protection
Environmental Conditions
Ambient temperature	-5°C to +55°C
Humidity	93%±3% on 40°C
Equipment List
Standard	Display unit KMR-7 Mounting brackets Manuals (quick start and quick installation manual) Standard accessories pack (one power/data cable, one data cable, 2 spare fuses, 4 mounting screws)
