$2,100.00Earn 2,100 points!

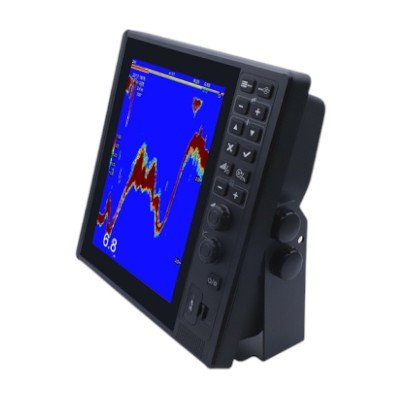

The KFISH-12 features a large, sunlight-viewable 12.1-inch TFT LCD. It is designed to provide “high-definition” underwater visualization, using a digital filter to help eliminate noise and clearly separate fish targets from the seabed. It includes advanced features typically found on high-end commercial sounders, such as Seabed Hardness Display and White Line functionality to help distinguish fish lying close to the bottom.
| Feature | KFISH-12 Technical Data |
| Display | 12.1-inch Color TFT LCD (800 x 600 pixels) |
| Output Power | 1 kW or 2 kW RMS (High Power Transceiver) |
| Frequency | Dual Frequency: 50 kHz & 200 kHz |
| Depth Range | Up to 2,000 meters (approx. 6,000 feet) |
| Echo Colors | 16 Colors (selectable background: blue, white, black) |
| Display Modes | Normal, Zoom (Bottom/Marker), Bottom-lock, A-scope |
| Connectivity | NMEA 0183 (Input/Output), Optional HDMI/USB/Ethernet |
| Waterproofing | IPX7 (Front Panel) |
| Hardness Display | Yes (compatible with specific ONWA/Hondex/Koden formats) |
