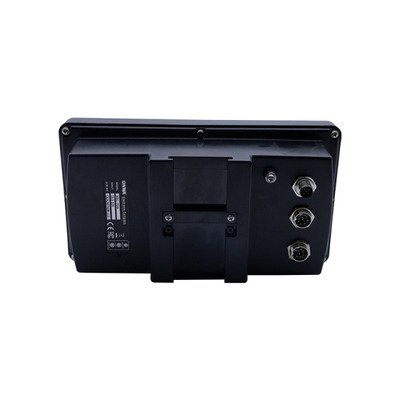

ONWA, KEC-70G Digital Compass

Heading Sensor for Radar/ARPA, AIS, ECDIS, Scanning Sonar
KEC-70G provides GPS information, Lon/Lat, SOG and COG, with Pitch and Roll Function
Used with High Accuracy Onwa Marine Heading Sensor KA-GC9A, Satellite Compass KA-SC20 or KA-SC90
Can Correct Magnetic Deviation Manually or Automatically
Provide NMEA0183 and NMEA2000 Heading and GPS Output
2 NMEA0183 output are RS422 Electrical Interface
There are no mechanical parts such as gimbals or rotating motor, thus the compass is free from routine maintenance.

Technical Specification

General
HEADING Sensor	KA-GC9A KA-SC20 KA-SC90
OUTPOT/INPUT(IEC61162-1)
OUTPUT: 2 x NMEA0183 (RS422)	Output Port 1: a) Output sentences : GGA, GSA, HEV , RMC and selectable sentences among of HDT, HDM and HDG b) Support sentences: RMC, GGA, GSA, GSV, HDT, HDG, HDM, HEV, GMS c) Baudrate: Selectable among 4800, 9600, 19200, 38400 d) Heading output intervals : Selectable among 100ms, 200ms and 1000ms Output port 2: a) Output sentences: Sentences from the heading sensor and selectable sentences among of HDT, HDM and HDG b) Support sentences: RMC, GGA, GSA, GSV, HDT, HDG, HDM, HEV, GMS, c) Baudrate: Selectable among 4800, 9600, 19200, 38400 d) Heading output intervals : Selectable among 100ms, 200ms and 1000ms
NMEA2000	Supported transmit PGN : 126992, 127250, 129025, 129026, 129029, 129033, 129539
Environmental Conditions
Ambient Temperature	Display unit : -5 °C to +55 °C Heading/GPS sensor unit : -25 °C to +70 °C (for KA-GC9A)
Humidity	93% ±3% on 40 °C
Waterproofing	Display unit : IPX6 Heading/GPS sensor unit : IPX7 (for KA-GC9A)
Power Supply
ELECTRICAL	10.5 – 32VDC
Protection	over-current, over-voltage, power transient and accidental reverse polarity protection
