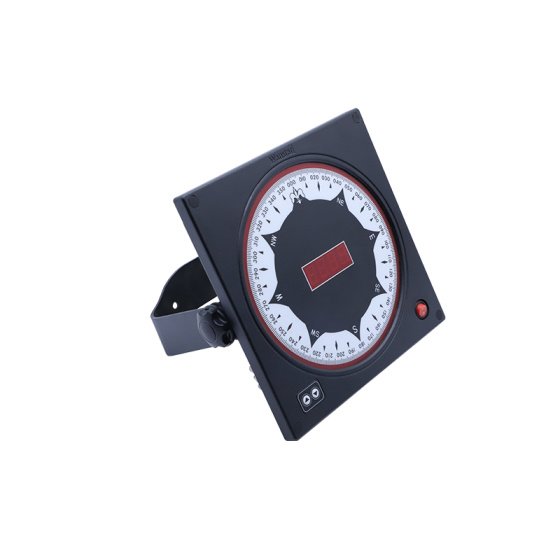

Onwa, KCR-160S - Digital Compass Repeater

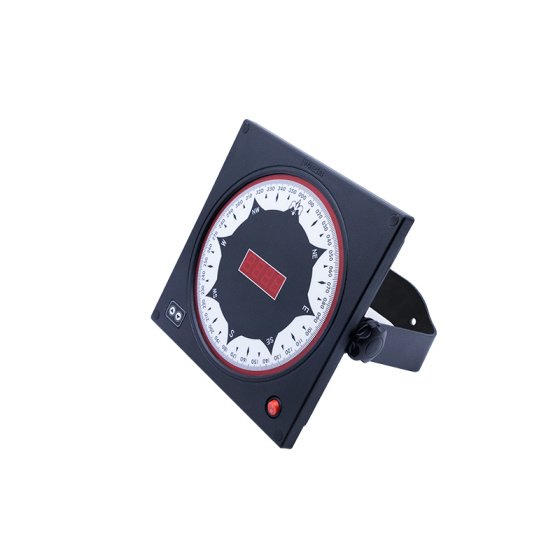

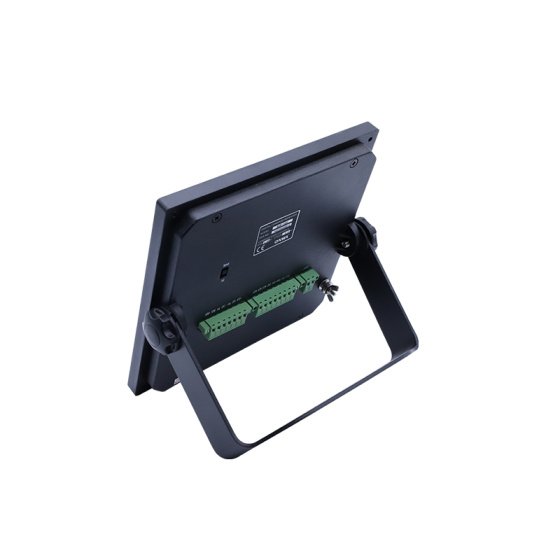

Onwa, KCR-160S - Digital Compass Repeater - Image 2

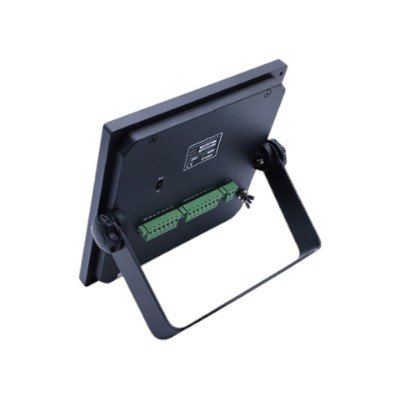

Onwa, KCR-160S - Digital Compass Repeater - Image 3

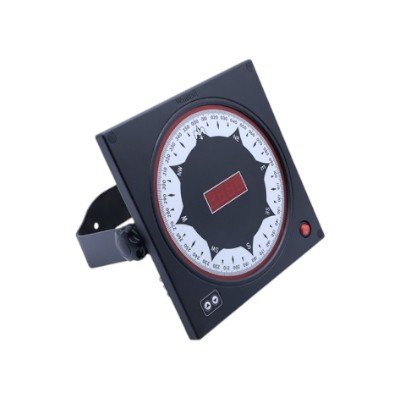

Onwa, KCR-160S - Digital Compass Repeater - Image 4

Onwa, KCR-160S – Digital Compass Repeater

$600.00Earn 600 points!

Add To Wishlist
Remove From Wishlist
Categories , Tag Brand:

KCR-160

Digital Compass Repeater

  • 4-Digit LED Heading Displayreadout
  • Analog heading indicator by a rotatingLED light
  • Accuracy up to+/-0.1 degree
  • Electrical nterface of nput ports and output ports
  • support RS232, RS422 and RS485
  • Repeating the input digital heading inputto 2 outputs
  • Wde range power supply 9V-32VDC
  • Reverse Power pdariy protection
  • Easyinstallation



KCR-160S

Digital Compass System



Total solution marine electronic compass

Electrical interface of output ports supports

RS232, RS422 and RS485



Technical Specification

Specification

Dimension: 200 mm x 200 mm x 27mm
Weight 1.2 kg
Compass Safe Distance 1 m
Waterproof IP66
Working Temperature  -20℃ to +70℃
Humidity lower than 95%
Scale Accuracy 1.5°
Digital Display Accuracy ± 0.2°
Track Rate 45°/s
Power Supply 9V – 36VDC, 0.20A at 24VDC
Input Data RS-422, RS-485 or RS-232
Output Data RS-422, RS-485, RS-232
Input Data Format NMEA 0183(HDT or HDM), baudrate : 4800,no priority,1 stop bit
Output Data Format AD-10 and NMEA 0183(HDT), baudrate : 4800,no priority,1 stop bit

There are no reviews yet.

Be the first to review “Onwa, KCR-160S – Digital Compass Repeater”

Your email address will not be published. Required fields are marked *

Download

KCR-160S Brochure PDF
