NINGLU, Multifunctional Repeater NM501

$850.00Earn 850 points!

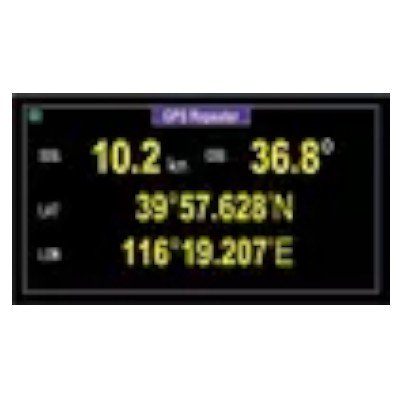

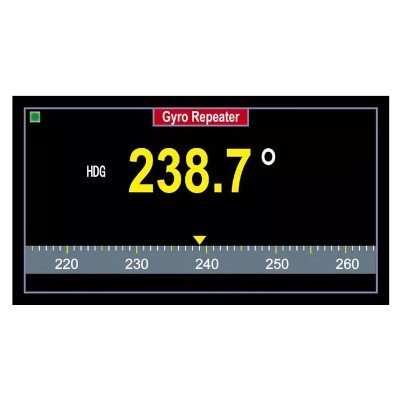

NM501, 7 inch Multifunctional Repeater, displays depth, wind, gyro, speed log and GPS navigation messages on one screen.

Its rugged and handsome design offers excellent user feelings.

Remote controller is available for ceiling installation.

Features

▶  5 channels repeater, only one cable is needed
(     (GPS/Depth/Wind/Speed log/Gyro repeaters)
▶   Multifuctional repeater mode or Single repeater mode for option
▶   NMEA0183 data input

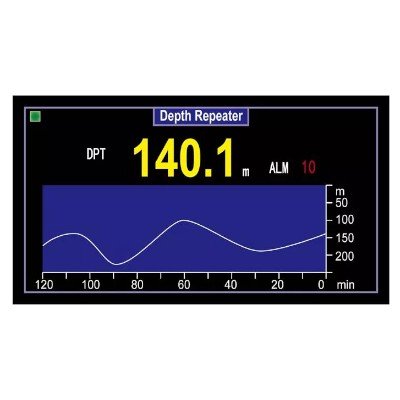

▶   Historical data analog display in Single repeater mode
▶   Wind/Depth alarm, Speed/Distance unit selectable
▶   Remote controller for option, easy control for ceiling mount

Technical Specification

Feature Specification
Display 7″ Color TFT LCD (480 x 234 pixels)
Input Protocol NMEA 0183
Supported Data GPS (RMC/GLL/GGA), Depth (DBT/DPT), Wind (MWV), Speed (VBW/VHW), Heading (HDT/HDM)
Alarm Modes Buzzer / Screen Flashing (Switchable)
Power Supply 24V DC (18V – 33V)
Power Consumption < 10W
Operating Temp -15°C to +55°C
Protection IP23

There are no reviews yet.

Be the first to review “NINGLU, Multifunctional Repeater NM501”

Your email address will not be published. Required fields are marked *

Download

Operation Manual NM501 V120917
