The NINGLU NMEA917 is the heavy-duty, dual-channel version of Ninglu’s NMEA distribution line. It is designed for complex bridge systems that require large-scale data sharing from two different sensors (like a GPS and a Gyro) to up to 14 different listeners.
| Feature | Specification |
| Model | NMEA917 (Standard Version) |

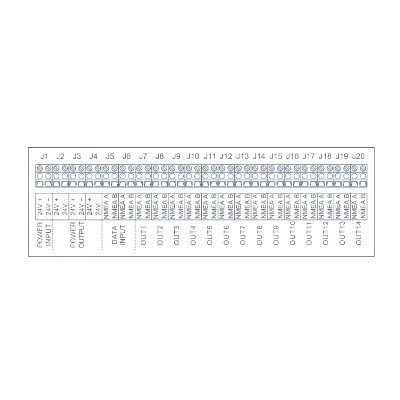

| Input Ports | 2 x NMEA 0183 (Opto-isolated) |
| Output Ports | 14 x NMEA 0183 (Buffered & Amplified) |
| Baud Rate | Supports 4800 up to 115,200 bps (High-speed AIS/Gyro) |
| Power Supply | 18V – 33V DC (Standard 24V Marine) |
| Isolation | Full electrical isolation between input and outputs |
| Mounting | Bulkhead / Console internal mounting |

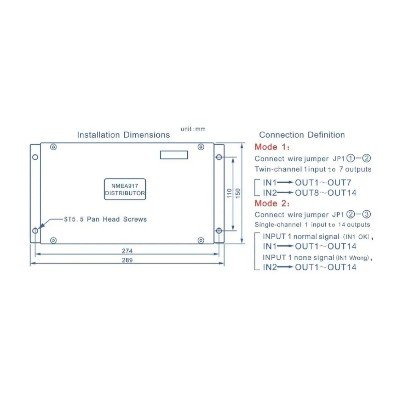

| Dimensions | $289 \times 150 \times 60 \text{ mm}$ |
