The Ninglu SR362 is a professional-grade steering repeater designed to provide a classic, intuitive heading display for helmsmen and bridge officers.¹ Unlike the purely digital IR361, the SR362 features a mechanical-style 360° compass card visualization to facilitate easier steering and course-keeping.

The SR362 acts as a “slave” unit that receives NMEA 0183 heading data (usually $HDT) from a master Gyrocompass or GPS Compass.³ It is specifically designed for bridge consoles where a traditional compass dial is preferred for quick orientation.

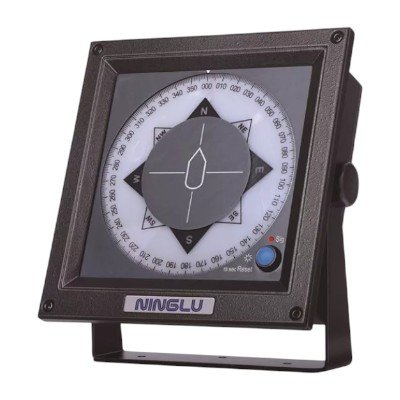

• 360° Compass Card: Features a high-contrast analog-style dial that provides a clear visual representation of the ship’s heading.⁴

• Digital Accuracy: Despite the analog look, it is driven by high-precision digital electronics to ensure ⁵$\pm 1^\circ$ accuracy.⁶

• Dual-Interface Display: Often includes a small digital LED segment to show the exact numeric heading alongside the dial.⁷

• Advanced Dimming: Includes 6 levels of adjustable backlight intensity, manageable via front-panel touch-sensitive buttons or an external remote dimmer (DIM930).

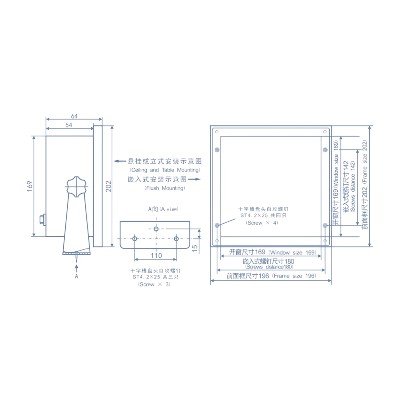

• Versatile Mounting: Robust casing designed for flush-mounting in bridge consoles or bracket-mounting on tabletops or ceilings.
