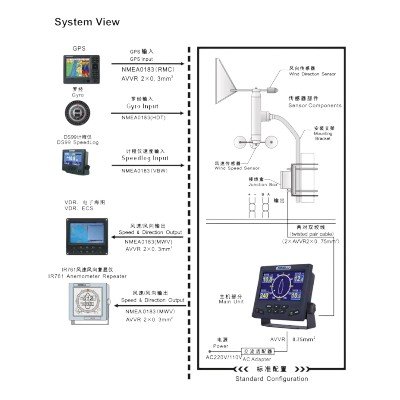

The AM706E acts as the primary bridge display, featuring a 7-inch high-brightness color LCD. It is capable of showing both Relative Wind (measured relative to the ship) and True Wind (calculated by integrating data from GPS, Gyro, or Speed Log). The unit is built for the harsh marine environment, with high-resolution digital and analog (compass-style) visual reporting.
| Feature | Specification |
| Display | 7″ Color TFT LCD (480 x 234 pixels) |
| Wind Speed Range | 0 – 60 m/s |
| Wind Direction Range | 0 – 359° |
| Speed Accuracy | ±5% (Minimum 0.1 m/s) |
| Direction Accuracy | ±1° |
| Startup Wind Speed | ≤ 1.2 m/s |
| Data Interface | NMEA0183 (MWV, RMC, VTG, HDT, VBW) |
| Power Supply | 24V DC (20V – 32V) |
| Protection Rating | IP23 (Display Unit) / IP56 (Sensor Unit) |
