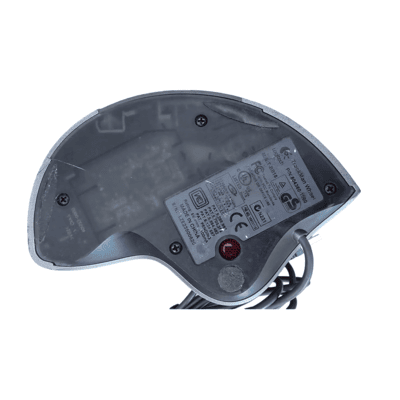

Logitech 804360-1000/T-BB18 Trackman Wheel Optical Trackball Mouse, USB-A

The Logitech 804360-1000/T-BB18 Trackman Wheel Optical Trackball Mouse is a classic, wired, ergonomic trackball mouse designed for right-handed users. It features an optical tracking system (utilizing “optical Marble technology” as Logitech called it) for precise and smooth cursor movement, eliminating the need for frequent cleaning typical of older mechanical trackballs.

A key highlight is its thumb-controlled trackball, which allows users to move the cursor by rolling the ball with their thumb, significantly reducing wrist and arm movement compared to a traditional mouse. It also includes a scroll wheel and three customizable buttons for enhanced navigation and functionality.

Connecting via USB-A, the T-BB18 is known for its comfortable design, aiming to reduce hand fatigue during extended use. It was a popular choice for users seeking an alternative input device that offered precision and ergonomic benefits.

Technical Specification

General:

Model Number: T-BB18
Part Number (P/N): 804360-1000 (often seen with the T-BB18 model number)
Color: Grey and Red (referring to the housing and trackball)
Hand Orientation: Right-handed
Ergonomics: Designed for comfort and to reduce wrist/arm movement.

Tracking:

Tracking Method: Optical Trackball (utilizing “optical Marble technology” for precise, virtually maintenance-free tracking)
Maximum DPI: Reportedly up to 1000 DPI (some sources mention 1000 DPI, others suggest it’s within a range that was standard for optical mice of its time).
Trackball Diameter: Approximately 34mm (1.34 inches)
Trackball Color: Red with black speckles (often referred to as “Marble” due to its pattern).

Connectivity:

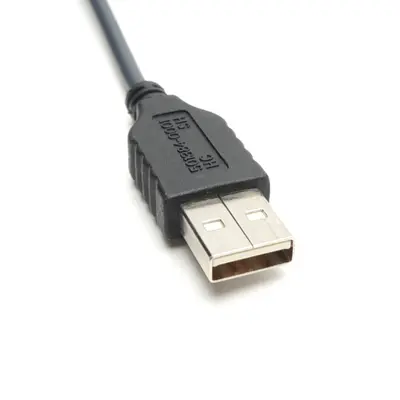

Interface: Wired USB-A
Cable Length: Approximately 5 feet (1.5 meters)
Compatibility:
- Operating Systems:
  - Windows: Windows 95, 98, 2000, Me, XP, NT 4.0, 7 (and likely works with later versions via generic drivers).
  - Mac OS: Mac OS 8.6 or later.
  - Linux (basic functions generally supported without specific software).
- Plug-and-Play: Generally recognized by operating systems without needing specific driver installation, though Logitech’s SetPoint software (if compatible with older versions) could offer customization.

Buttons & Controls:

Number of Buttons: 3 (Left, Right, and Scroll Wheel click/middle button).
Scroll Type: Scroll Wheel (vertical scrolling).
Additional Functionality: The scroll wheel also functions as a third clickable button. While not explicitly stated for this exact model, similar Logitech trackballs sometimes had basic forward/back button functionality built-in or configurable.

Power:

Power Source: Corded Electric (powered via USB connection)
Voltage/Current: Typically 5V, 100mA (standard for USB peripherals).

Physical Dimensions (Approximate):

Length: Around 150 mm (5.9 inches)
Width: Around 90 mm (3.5 inches)
Height: Around 60 mm (2.4 inches)
Weight: Approximately 171g (0.37 lbs) to 408g (0.9 lbs) – variations may exist in reported weights.

Other:

Internal Switches: Often uses Omron D2FC-F-7N / D2F-01F switches for the buttons.
Durability: Known for being a robust and long-lasting device.
