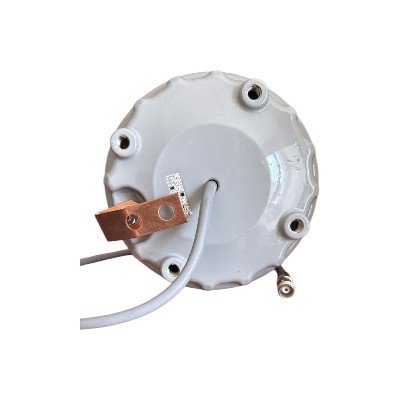

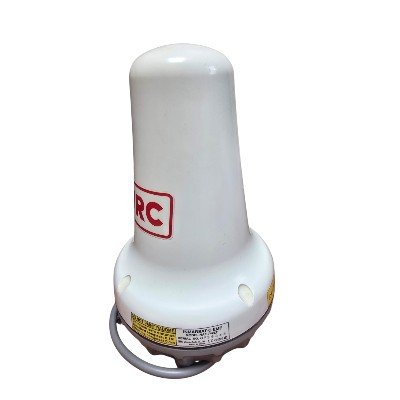

The JRC NAF-742LT is a marine satellite communication antenna designed for use with the JRC JUE-95LT Inmarsat-C LRIT system. It is the externally mounted equipment (EME) that provides the radio link between the vessel and the Inmarsat satellite network.
Designed for maritime Inmarsat-C communication — used for data and safety messaging at sea.
Typical use: Long-Range Identification and Tracking (LRIT), vessel tracking, position reporting, and text/data communications over satellite.
Paired specifically with the JRC JUE-95LT terminal system (the dome antenna connects via a coax cable to the below-deck terminal)
System: JRC JUE-95LT Inmarsat-C LRIT system (antenna model NAF-742LT)
IMO Type Approved: Yes (LRIT compliance)
Class: Inmarsat-C MES Class 1
Transmit Frequency (TX): 1626.5 – 1646.5 MHz
Receive Frequency (RX): 1530.0 – 1545.0 MHz
Channel Spacing: 5 kHz
G/T: ≥ –23.7 dB/K minimum at 5° elevation
EIRP: +7 to +16 dBW
Modulation: BPSK, 1200 symbols/sec (both TX & RX)
Data Rate: TX 600 bps / RX 600 bps
Antenna Type: Helical
Radiation Pattern: Hemisphere (non-directional)
Polarization: Right-hand circular
Transmission Message Size: Up to 8 KB
Message Storage: 80 KB total (Inmarsat-C 40 KB + EGC or other 40 KB)
Power Supply Voltage: DC 24 V (+30 % / –20 %)
Power Consumption:
• TX: ~75 W (terminal + antenna)
• RX: ~15 W (terminal + antenna)
Antenna Operating Temperature: –35 °C to +55 °C
Terminal Operating Temperature: –15 °C to +55 °C
Preservation (Storage) Temp: –40 °C to +80 °C
Relative Humidity: Up to 95 % @ +40 °C
Icing: Up to 25 mm on antenna
Precipitation: Up to 100 mm/hour
Wind Loading: Up to 100 knots
Vibration: As specified by Inmarsat standards
Antenna (EME) Size: Approx. 144 mm diameter × 224 mm height
Antenna Mass: ~1.5 kg
