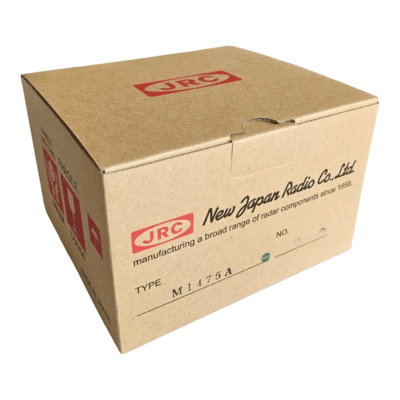

M1475A is designed for the magnetron of X-band radar system. The frequency range is fixed <9345 – 9405MHz> and the peak output power is 25kW.
Primarily designed for marine and weather radar systems, including JRC radar models such as JMA‑7000/9000 and A2604A
| Parameter | Value |
|---|---|
| Frequency | 9345–9405 MHz (Fixed) |
| Peak Power | 25 kW |
| Pulse Duration | 0.05–1.2 µs (nominal 1.0 µs) |
| Duty Cycle | 0.001 |
| Anode Voltage | 7.2–8.5 kV (typical 8 kV) |
| Anode Current | 6–10 A (typical 8 A) |
| Heater Voltage | 5.7–6.9 V (standard 6.3 V) |
| Heater Current | 0.43–0.6 A (standard 0.52 A) |
| Cooling | Air / Forced air |
| Weight | ~0.7 kg |
| Waveguide Interface | WR90 / UG‑135/U flange |
| RoHS Compliant | Yes |
