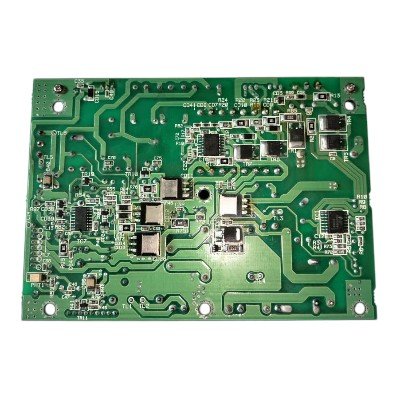

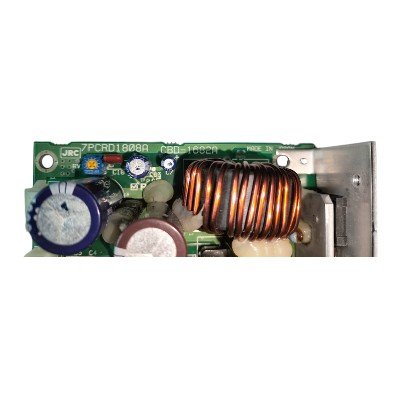

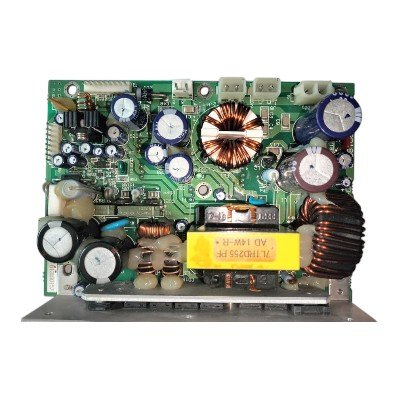

The CBD-1682A serves as the primary power distribution and regulation hub within the radar’s “up-mast” scanner unit.
Role: It converts incoming ship’s power (typically 100V or 220V AC) into the stable DC voltages required for the radar’s electronic components.
Compatibility: Primarily used in NKE-1125, NKE-1129, and NKE-1130 scanner units (JMA-9100 and JMR-9200 series).
Safety Features: Built with over-voltage and thermal protection. It often features a potentiometer (RV1) that requires specific calibration when the board or magnetron is replaced.
| Feature | Specification |
| Model Number | CBD-1682A |
| Part Number | 7PCRD1808A |
| Input Power | AC 100-115V / 220-240V (Depending on scanner configuration) |
| Main Output | Regulated DC for Modulator (CPA-264) and Receiver (NRG-162A) |
| Weight | Approximately 575g |
| Adjustments | RV1 (Current/Voltage adjustment for magnetron stability) |
| Application | X-Band 25 kW Radar Systems |
