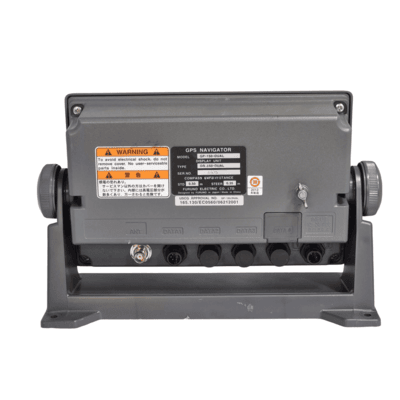

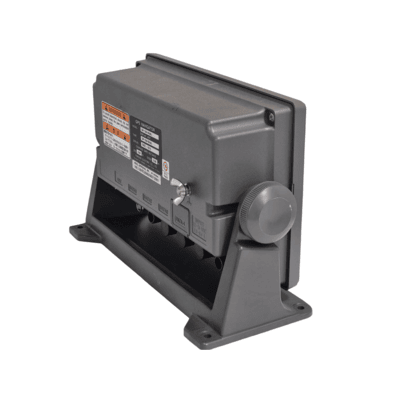

FURUNO, GP-150 MARINE GPS NAVIGATOR

Original price was: $350.00.Current price is: $325.00.Earn 325 points!

1 in stock

SKU 6416-6484 Categories , Tag Brand:

FURUNO GP-150 is a GPS navigator designed for the SOLAS ships according to the GPS performance standard IMO Res MSC.112(73) and associated IEC standards effective on and after July 1, 2003. It is a highly reliable standalone EPFS (electronic position fixing system)
that feeds positioning information to AIS, Radar, VDR, Video Plotter, Autopilot, Echo Sounder and Sonar.
The GP-150 consists of an antenna and display unit. The display unit is a 6″ silver bright LCD, offering optimum viewing around the clock.
In order to improve position accuracy, WAAS and DGPS* augmentation systems are available. Dual configuration, with a second system, provides a backup and/or remote operation to ensure system availability.

Technical Specification

GPS RECEIVER

  • Receiving frequency – 1575.42 MHz
  • Tracking code-  C/A code
  • Number of channel GPS: 12 channels parallel, 12 satellites
  • Position fixing method All-in-view, 8-state Kalman filter
  • Accuracy
    GPS: 10 m approx. (2drms)
    DGPS: 5 m approx. (2drms)
    WAAS: 3 m approx. (2drms)

DISPLAY SECTION

  • LCD display Monochrome LCD 122 x 92 mm, 320 x 240 dot matrix
  • Display modes Plotter 1 (NU), Plotter 2 (CU), Highway, Navigation, Data
  • Projection Mercator

INTERFACE

  •  Number of ports 4
  • Data format IEC61162-1 Ed.3, NMEA0183 Ver1.5/2.0

POWER SUPPLY

  • Display unit 12-24VDC: 0.8-0.4A (w/ internal beacon receiver)
  • Rectifier (PR-62, option) 100/110-115/220/230 VAC, 1 phase, 50/60Hz
