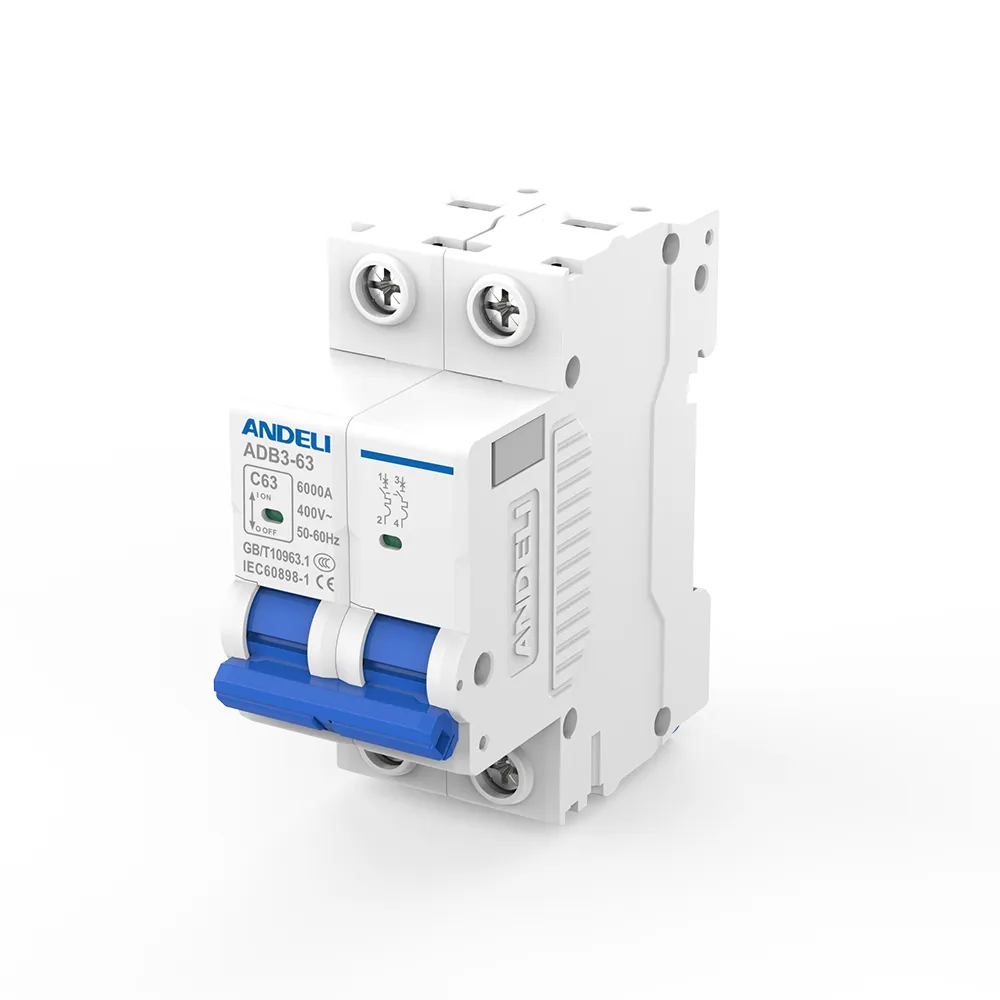

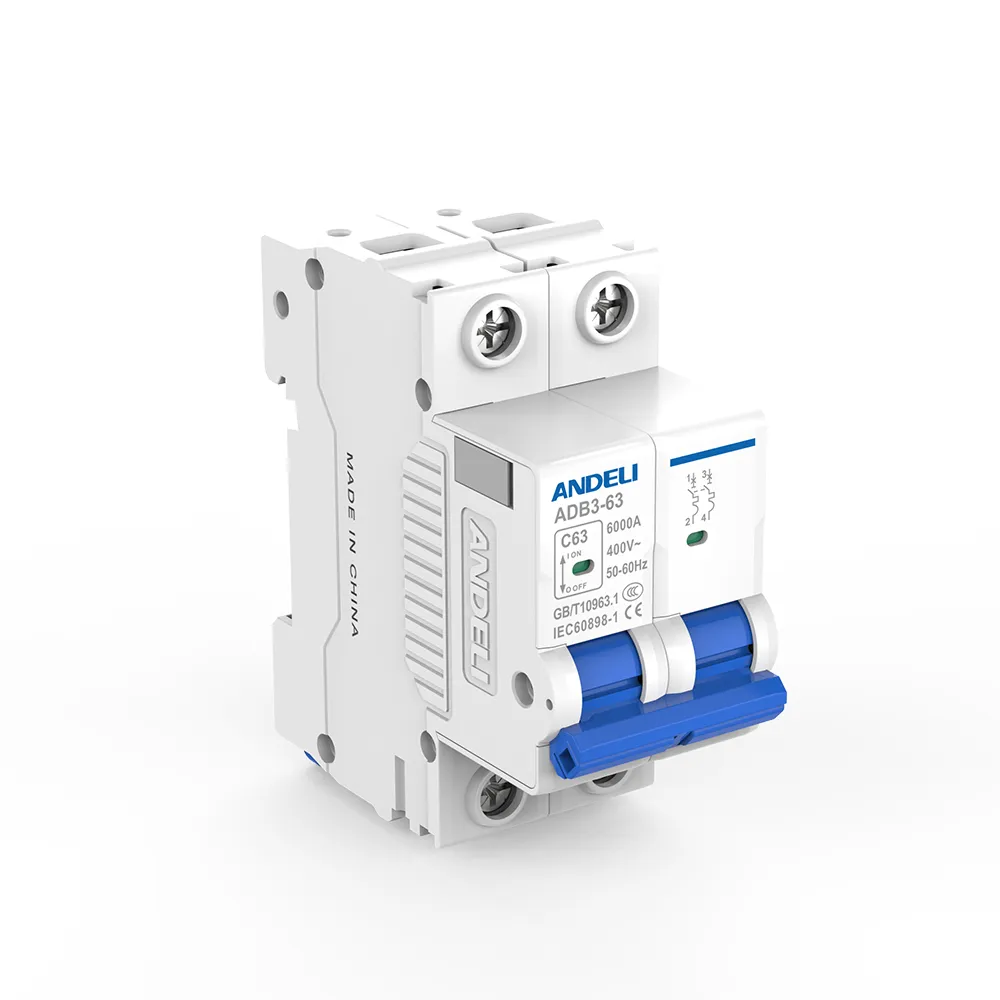

The ADB3-63-2P is a Miniature Circuit Breaker (MCB) typically manufactured by Andeli, designed for overcurrent (overload) and short-circuit protection in low-voltage electrical distribution systems. The designation “2P” indicates it is a two-pole device, meaning it simultaneously protects and switches both the live and neutral conductors. The “63” in the model number signifies a maximum frame rating of 63 Amperes (A), with individual current ratings (like 10A, 25A, 40A, etc.) available up to that value. It is engineered for quick, safe disconnection when a fault occurs, making it suitable for mounting on a standard DIN rail in residential, commercial, or light industrial electrical panels.
| Specification | Detail |
| Poles | 2P (Two-Pole) |
| Application | Overcurrent and Short-Circuit Protection |
| Rated Voltage (Ue) | 400V AC (or 230/400V AC) |
| Rated Current (In) | Available from 6A up to 63A (e.g., 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A) |
| Rated Short-Circuit Breaking Capacity (Icn) | Typically 6000A (6kA) |
| Frequency | 50/60 Hz |
| Trip Curve/Characteristic | Usually available in Type B, C, or D (Type C is the most common for general applications) |
| Standard Compliance | IEC/EN 60898-1 or GB/T10963.1 |
| Mounting | DIN Rail (EN 60715) |
